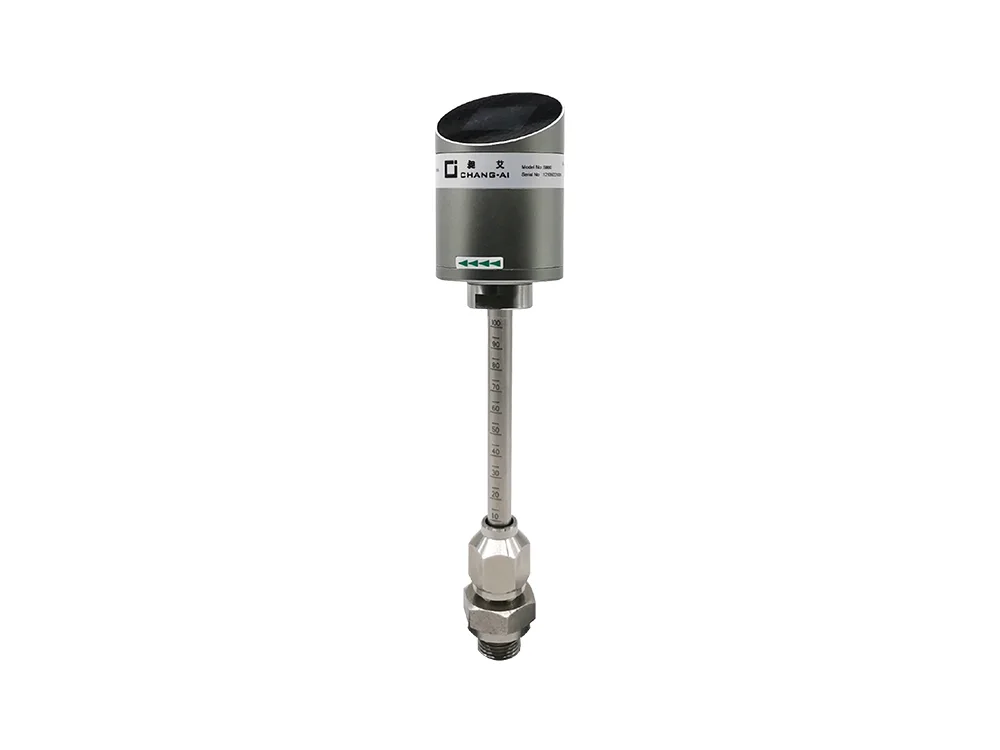

Compact-Sensitive CI-SM80/81 Series thermal mass flow sensor
Based on the thermal principle, it is not affected by temperature and pressure, and integrates temperature measurement;
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The quality of the product is guaranteed as quality is always crucial to the long-term development of our company.
CI-SM80/81 Series thermal mass flow sensor Product Features
Based on the thermal principle, it is not affected by temperature and pressure, and integrates temperature measurement;
Ultra-wide turndown ratio, measuring range 0.1Nm/s to 80Nm/s;
The fully isolated electrical structure completely filters out interference;
1.5" IPS ultra-wide viewing angle LCD screen with capacitive touch;
Standard RS485 Modbus RTU interface and 4~20mA current/pulse output.
Technical Index
| Measuring range | 0 (0.1)~0 Nm/s |
| Accuracy | ±(2% of reading + 0.3% of full scale), |
| option: 1% accuracy | |
| Sampling rate | >20 sample points per second |
| Medium | Compressed Air, Nitrogen, Oxygen, Hydrogen, carbon dioxide, and other non-condensable gases. |
| Reference conditions | 20℃, 1 bar(a) - ISO 1217(editable) |
| Analog signal(standard) | 4~20mA(Isolated) / Pulse output |
| Digital output (standard) | RS485, MODBUS RTU protocol |
| Connector | 2 x 5-pin M12，Female |
| Work pressure | SM80/81:0~5.0MPa (>1.6 MPa need to be equipped with high pressure installer) |
| 18~30V / 5W | |
| Process connection | G1/2"（ISO 228-1） |
The quality of the product is fully assured by the implementation of the strict quality management system.
