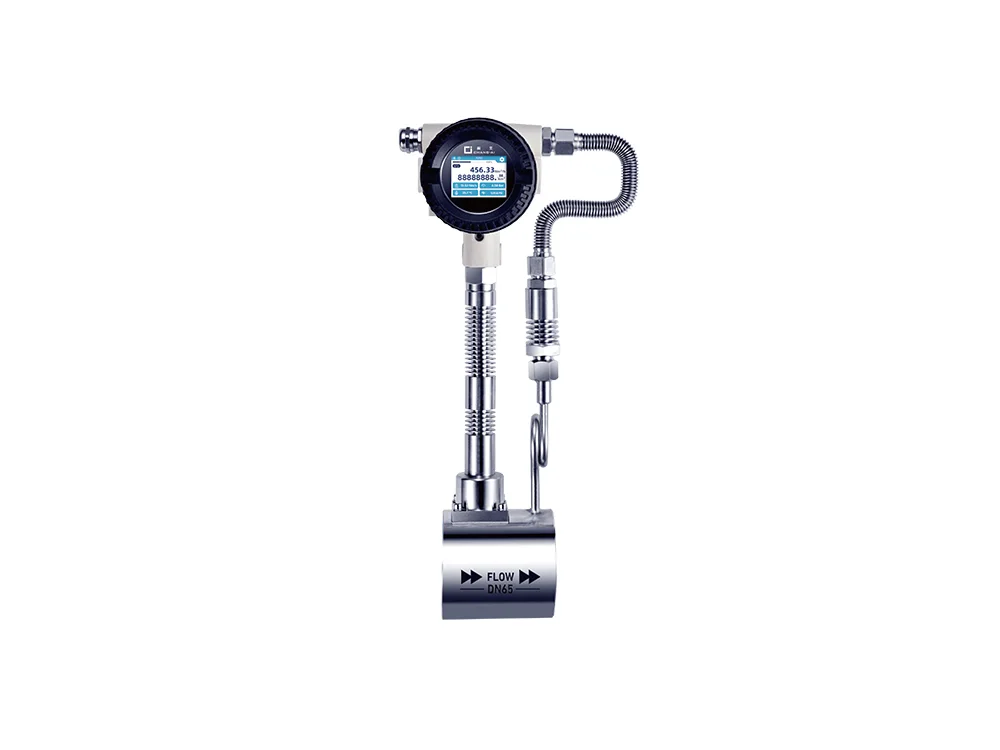

Steam-Optimized CI-FV20x-VS Vortex steam mass flowmeter
One of the core competitiveness of CHANG AI lies in its unique design.
CI-FV20x-VS Vortex steam Mass Flowmeter Product Features
Wide measurement range, the lower limit of gas flow rate can be as low as L5m/s (working condition);
Suitable for dirty and wet compressed air, various industrial gases such as oxygen and natural gas, and steam and other media;
Ultra-high sensitivity dual vortex probe with wider range ratio;
High-performance DSP, combined with DSA (Digital Spectrum Analysis) digital full-spectrum analysis technology, can accurately distinguish flow, vibration and electromagnetic interference signals, greatly improving the anti-vibration performance of the flowmeter.
Technical Index
| medium | Gas/steam/liquid |
| Flow Measurement | |
| Measuring range | 1.5m/s~80m/s (gas/steam service flow velocity) |
| 0.15 m/s~8 m/s (flow rate of liquid working condition) | |
| accuracy | Class 1.0 |
| Repeatability | ±0.2% RD |
| Reference condition | 20°C, 1 bar(a) - ISO 1217(editable) |
| Pressure Measurement | |
| Measuring range | 0~1.7MPa(a) (6.3MPa optional) |
| accuracy | ±0.5% FS |
| Power Supply | |
| measurement | DC 18~30V 10W @ DC 24V |
