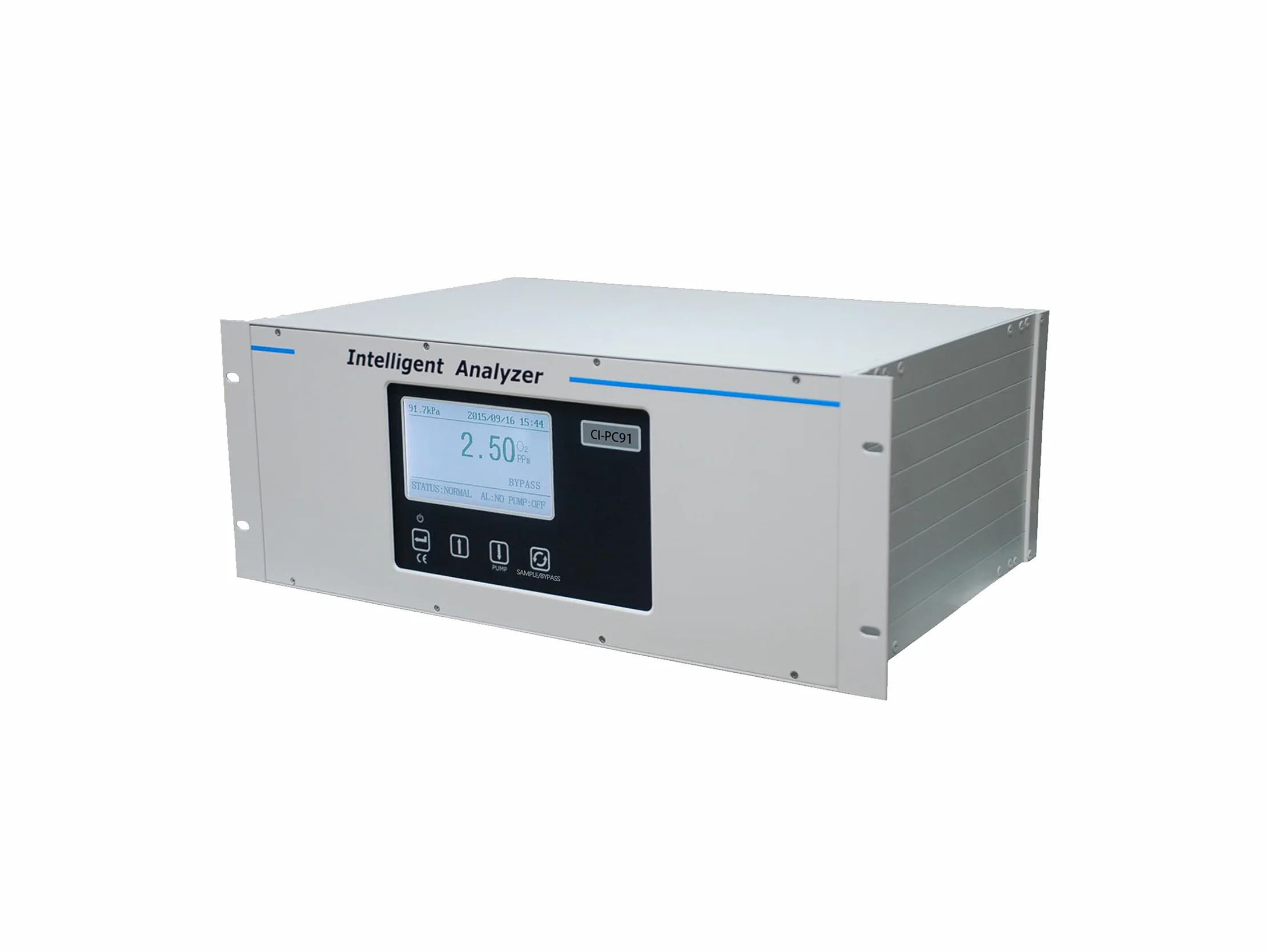

Reliable CI-PC91 Trace oxygen analyzer
In tune with the track of market development, the product is widely accepted by customers.
CI-PC91 Trace Oxygen Analyzer Product Features
With overpressure protection, when the pressure in the gas path exceeds the pressure protection range, automatically cut off the gas path on both sides of the sensor chamber;
High precision temperature and pressure automatic
compensation, reduce the impact of temperature and pressure on the measurement accuracy;
With over-range protection, when the oxygen concentration is higher than the protection limit value, automatically cut off the gas path on both sides of the sensor chamber, to avoid the sensor long time in the nvironment with high oxygen concentration and affect its performance and life.
Technical Index
| Sensor | Electrochemical oxygen sensor |
| Measuring range | 0~10/ 100/ 1000ppm/ 1%/ 25.00% O₂ |
| Linear error | 0.01~9.99ppm O₂ :±5% FS |
| 10.0~99.9ppm O₂ :±3% FS | |
| 100~1000ppm O₂ :±2% FS | |
| Repeatability | 0.01~9.99ppm O₂ :±2.5% FS |
| 10.0~99.9ppm O₂ :±1.5% FS | |
| 100~1000ppm O₂ :±1% FS | |
| Stability | 0.01~9.99ppm O₂ :±2.5% FS/7d |
| 10.0~99.9ppm O₂ :±1.5% FS/7d | |
| 100~1000ppm O₂ :±1% FS/7d | |
| Response time | T₉₀<60s(25℃) |
| Power supply | AC 100~240V, 50/60Hz |
| Analog signal | 2 groups, 4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
| 1-5V can be set mode freely | |
| Switching signal | 6 groups,relay contact capacity:DC 24V, 0.2A |
| Communication | RS485(standard)/RS232(optional) |
| External control | 5 groups,control signal DC 9~28V |
| Sample gas flow | 0.5~2L/min (recommended 1.5L/min ) |
