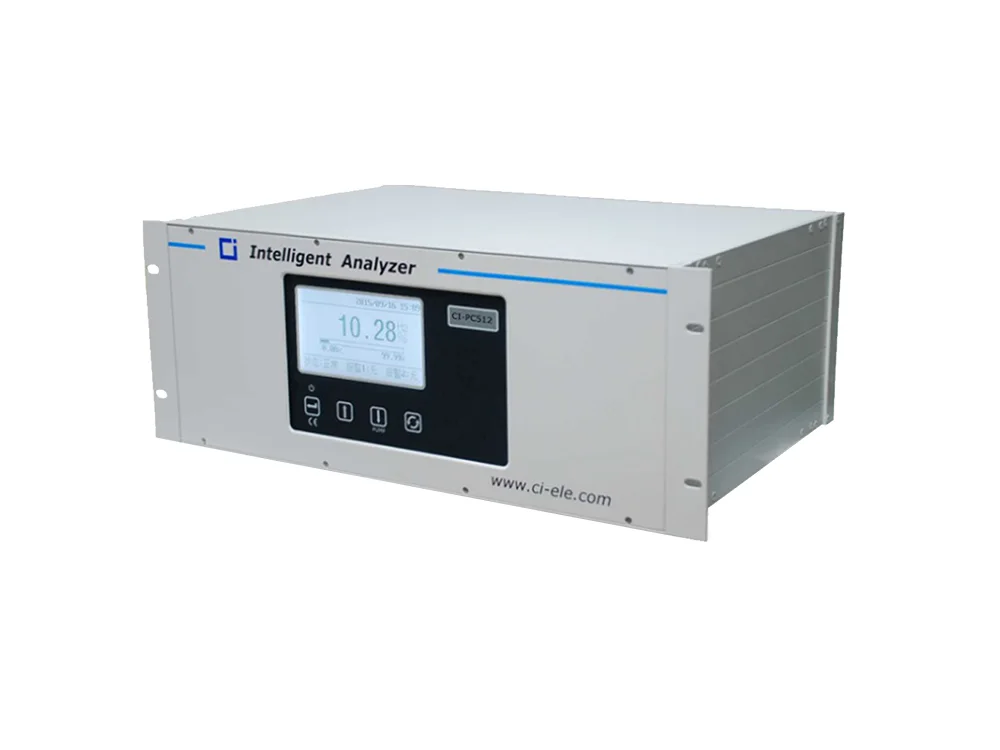

Custom CI-PC512 Selective hydrogen content analyzer
The product stands out firmly in the market for its huge features.
CI-PC512 Selective hydrogen content analyzer Product Features
The sensor is specific to hydrogen and has no cross-sensitivity to other gases;
The surface of the window is covered with a piece of toughened glass to enhance the impact protection of the window;
Using capacitive touch buttons, the buttons are sensitive, reliable and easy to operate;
Menu lock switch: prevent misoperation from changing analyzer parameters and affecting its normal operation;
When the hydrogen concentration deviates from the alarm value, an alarm will be issued, and the alarm value can be set arbitrarily within the full scale range.
Technical Index
| Measuring range | 0.01%~10% 15%~99.99% H2(customizable) |
| Linear error | 0.30% |
| Repeatability | 0.20% |
| Stability | 0.2%/7d |
| Response time | T₉₀<30s |
| Linearity | 0.20% |
| Power supply | AC 100~240V, 50/60Hz |
| Consumption | <30VA |
| Communication | RS485 (standard)/RS232 (optional) |
| Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
| 1-5V, can be set mode freely | |
| Load:<500Ω | |
| Ambient TEMP. | -10~+45℃ Ambient humidity:<80%RH |
| Sample gas flow | 0.1~10slpm(1.0sIpm recommended) |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
| Negative/Slightly positive pressure (optional) when the air pump is configured |
