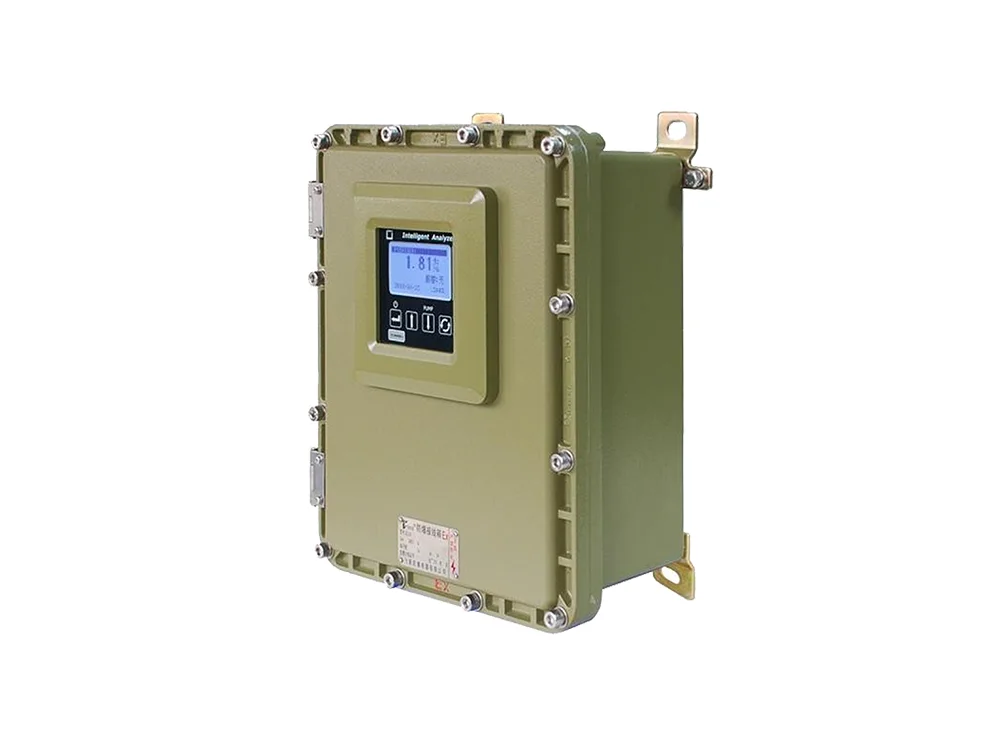

Wholesale CI-PC552-1 Explosion-proof selective hydrogen content analyzer
A great variety of models are designed by our professional designers to make CHANG AI more attractive.
CI-PC552-1 Explosion-proof selective hydrogen content analyzer Product Features
The sensor is specific to hydrogen and has no cross-sensitivity to other gases;
Using capacitive touch buttons, the buttons are sensitive, reliable and easy to operate;
Interference gas compensation function: eliminate the influence of interference gas on measurement accuracy;
Data storage: support U disk and SD card data storage, large data storage capacity and convenient for users to process and analyze data, the timing data storage inside the instrument is convenient for users to quickly view test data.
Technical Index
| Measuring range | 0.01%~2%/ 10% H₂ |
| Linear error | 0.30% |
| Repeatability | 0.20% |
| Stability | 0.2%/7d |
| Linearity | 0.20% |
| Background Gas | N₂、CO₂、He、Ar、 Alkanes, Olefin, Alkyne, and other Noble Gases, should not contain CO and H₂S |
| Power supply | DC 24V, consumption<25VA |
| Ambient TEMP. | Gas: -20~+60℃ Operation: -10~+55℃ |
| Storage: -20~+60℃ | |
| Ambient humidity | <90%RH |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
| Sample gas flow | 0.1~10slpm(1.0sIpm recommended) |
| Alarm output | Alarm point: 1 |
| Relay capacity: DC 24V, 0.2A | |
| Communication | RS485 (standard)/RS232 (optional) |
Strict quality inspection procedures throughout the entire production process, must have excellent quality and performance.
