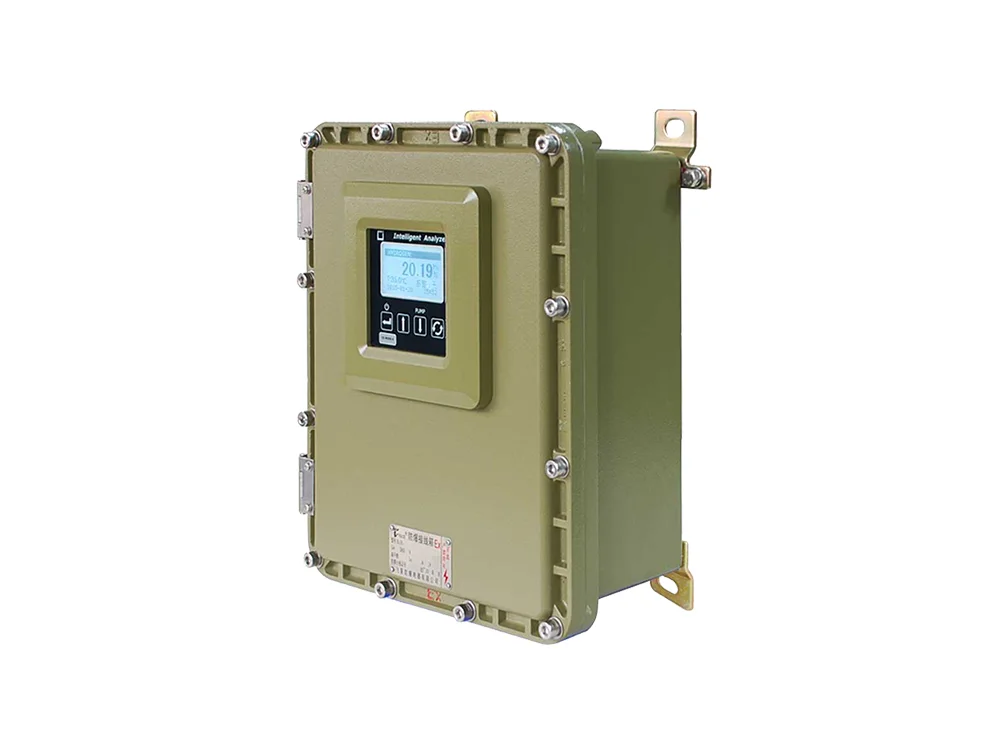

Top CI-PC55-1 Explosion-proof thermal conductivity analyzer
Professional after-sales service personnel of will provide service at the first time according to customer requirements.
CI-PC55-1 Explosion-proof thermal conductivity analyzer Product Features
With a microprocessor as the core and a thermal conductivity sensor as the measurement unit, it has the characteristics of intelligence, good stability, high precision, and long calibration cycle;
Interference gas compensation function: eliminate the influence of interference gas on measurement accuracy;
Menu lock switch: prevent misoperation from changing analyzer parameters and affecting its normal operation;
Data storage: support U disk and SD card data storage, large data storage capacity and convenient for users to process and analyze data.
Technical Index
| Sensor | Thermal conductivity sensor |
| Measuring range | Please refer to page 50, CI-PC53 |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| Response time | T₉₀<30s |
| EX-Mark | Ex d IIB T6 Gb |
| IP Grade | IP64 |
| Power supply | DC 24V |
| Consumption | <15VA |
| Communication | RS485 (standard)/RS232 (optional) |
| Analog singal | 1group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
| 1-5V, can be set mode freely | |
| Load:<500Ω | |
| Ambient TEMP. | -10~+45℃ Ambient humidity:<90%RH |
| Sample gas flow | 200~400ml/min |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
| Negative pressure, slightly positive pressure (optional) when the air pump is configured |
