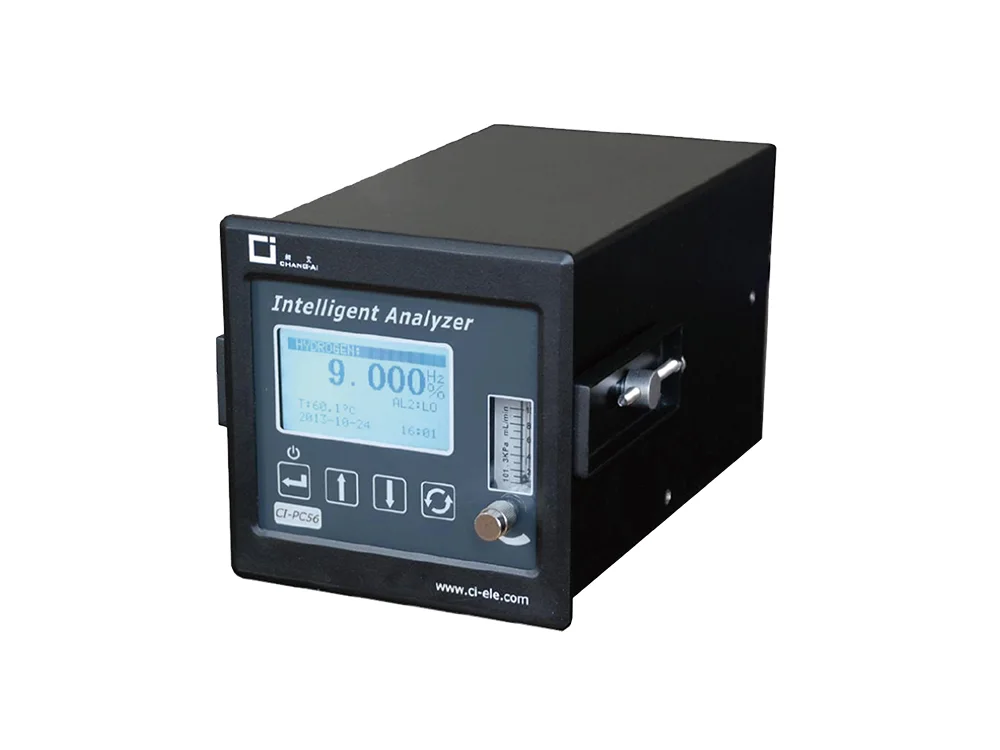

High quality CI-PC56 Thermal conductivity analyzer
This product has perfect quality and our team has a rigorous attitude of continuous improvement on this product.
CI-PC56 Thermal conductivity analyzer Product Features
Taking the microprocessor as the core, it has the characteristics of intelligence, good stability and high reliability;
The thermal conductivity sensor is used as the measurement unit, with high precision and long calibration period;
Automatically switch the analog output range according to the range of the gas concentration to improve the accuracy of the analog output;
Data storage: support U disk and SD card data storage, large data storage capacity and convenient for users to process and analyze data.
Technical Index
| Sensor | Thermal conductivity sensor |
| Measuring range | Please refer to page 50, CI-PC53 |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| Response time | T₉₀<30s |
| Power supply | AC 100~240V, 50/60Hz |
| Ambient TEMP. | +5~+45℃ Ambient humidity:<90%RH |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
| External control | Control signal: DC 9~28V |
| Interference gas compensation signal | Input 2 groups of 4-20mA interference gas compensation signals |
| Analog singal | 2 groups of 4-20mA analog output are standard configuration,4-20mA/0-20mA/ |
| 0-1V/0-5V/0-10V output mode, can be set mode freely | |
| Communication | RS485 (standard)/RS232 (optional) |
A team of highly experienced quality inspectors empowers us to provide this product in accordance with the international standards.
