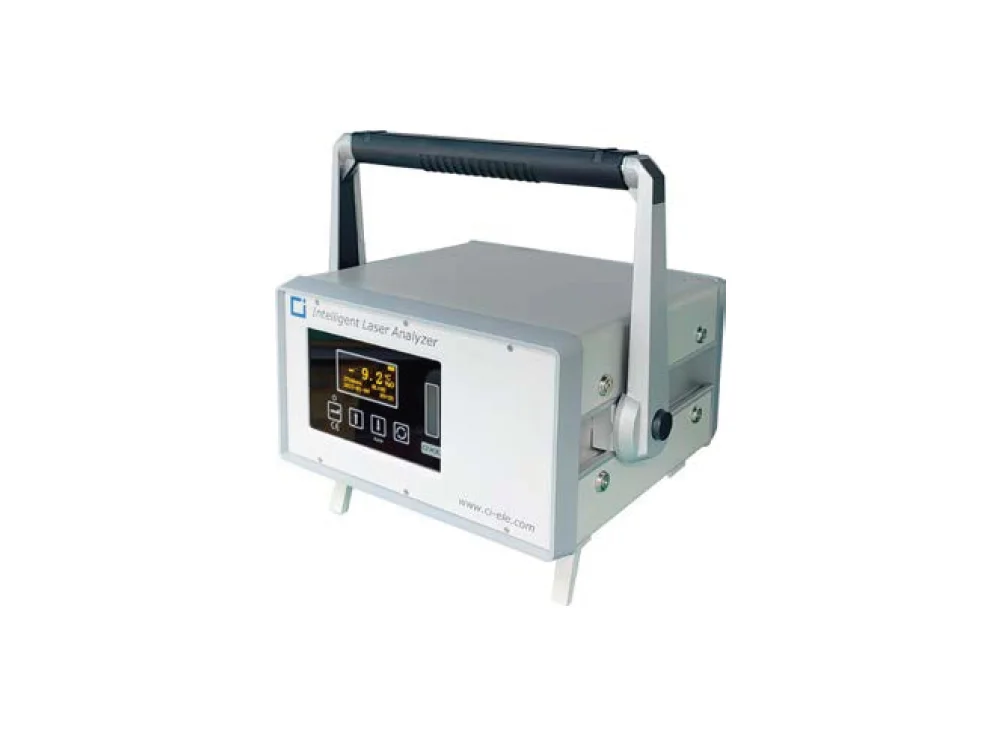

Best CI-PC63-DP Portable laser dew point meter
The product is regarded as one of the best quality-assured products in the industry.
CI-PC63-DP Portable Laser Dew Point Meter Product Features
Using laser principle, with the advantages of accurate measurement, fast response, high sensitivity, stability and reliability;
Preventive maintenance diagnosis, low maintenance;
128×64OLED screen window display dew point value, menu, data and instrument working state, intuitive display, rich content;
Dew point value and volume ratio display at the same time, to meet the different needs of users;
Using touch key technology, easy to operate, key long service life;
Using RS485 (standard) /RS232 (optional) two-way communication.
Technical Index
| Principle | Laser principle TDALS |
| Dew point range | -60℃~+20℃(basic type) |
| -80℃~+20℃(standard) | |
| Linear error | -80℃~+60℃ ±1℃ |
| -60℃~+60℃ ±0.5℃ | |
| Repeatability | ±0.5℃ |
| Zero drift | ±1%FS/7d |
| Range point drift | ±1%FS/7d |
| Response time | 63%[90%] range at temperature of 20° C and pressure of 1bar |
| -60→-20℃ Td 5s[10s] | |
| -20→-60℃ Td 45s[90s] | |
| Display resolution | 0.1℃ |
| Analog singal | 1 group |
| Analog singal mode | 4-20mA/0-20mA, software switching is supported |
| Ambient TEMP. | -20℃~+50℃ |
| Storage TEMP. | -20℃~+60℃ |
This product is with the perfect performance to support the user need.
