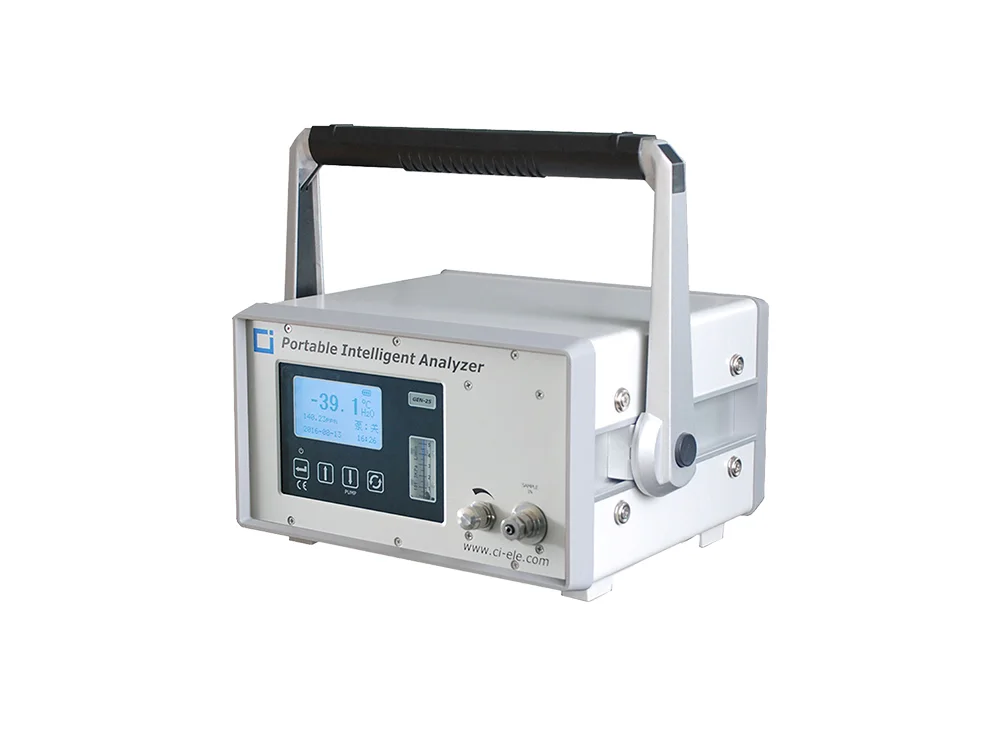

Best GEN-25 Portable intelligent dew point analyzer
The product only has superior quality but also has stable performance that customers can count on.
GEN-25 Portable intelligent Dew Point Analyzer Product Features
Good long-term stability, high reliability, high precision, long calibration cycle;
Dew point value and volume fraction display at the same time (ppm/V), to meet the different needs of users;
Built-in large capacity lithium battery, standby time can reach more than 48 hours;
Menu lock switch: prevent misoperation to change the analyzer parameters and affect its normal operation;
When the dew point value deviates from the alarm value, an alarm will be issued, and the alarm value can be set arbitrarily in the full range.
Technical Index
| Sensor | Ultra-thin alumina capacitive sensor |
| Measuring range | -60℃~+20℃ (basic) |
| -80℃~+20℃ (standard) | |
| -100℃~+20℃ (extension) | |
| Linear error | ±3℃(-80~-60℃) |
| ±2℃(-60~+20℃) | |
| Repeatability | ±0.5℃ |
| Zero drift | ±1%FS/7d |
| Range drift | ±1%FS/7d |
| Response time | 63%[90%] range at +20°C and 1bar pressure |
| -60→-20℃ Td 5s[10s] | |
| -20→-60℃ Td 45s[10min] | |
| Power supply | AC 100~240V, 50/60Hz |
| Consumption | <20VA |
| Connection port | DB-15 Female |
| Ambient TEMP. | 0~+45℃ Ambient humidity:<80%RH |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Under the quality management system, CHANG AI has attracted more customers for its high quality.
