Oxygen sensor Oxy-333-XL Replaces AII Oxygen sensor
Oxygen Sensor Oxy-333-XL Replaces: XLT-12-333 and XLT-T-2

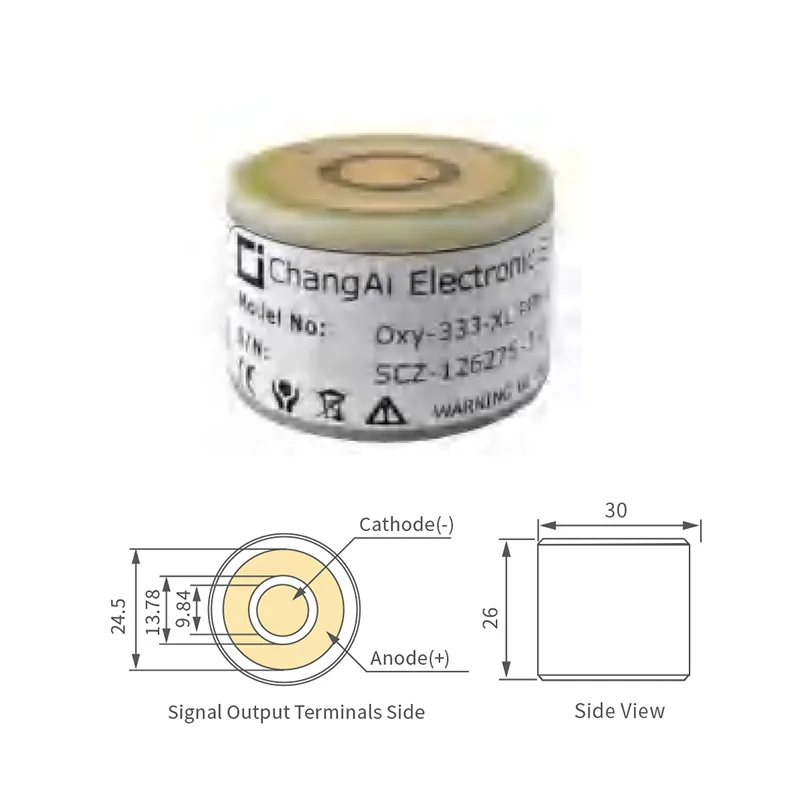

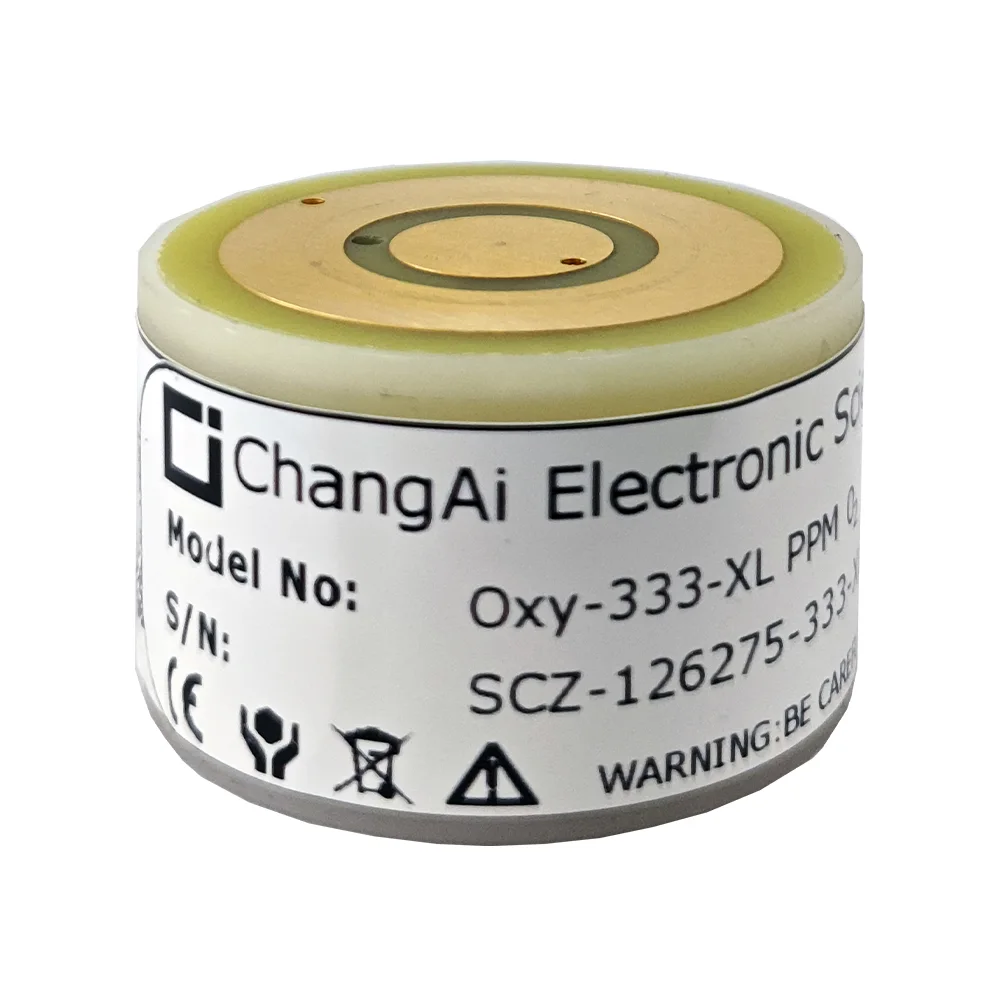

Oxy-333-XL PPM Oxygen Sensor
Electrochemical Galvanic Trace O₂ Sensor for PPM Oxygen Measurement (zero CO₂ cross sensitivity)
Oxy-333-XL PPM Oxygen Sensor is a galvanic type micro fuel cell specific to oxygen and is a direct replacement to Analytical Industries Model XLT-12-333.
Proprietary electrolyte formulation offers excellent compatibility with sample gas containing acid gases such as CO₂, traces levels of H2S and SO₂. Sensor is designed, devel oped and manufactured in the China.
Proprietary electrolyte formulation offers excellent compatibility with sample gas containing acid gases such as CO₂, traces levels of H2S and SO₂. Sensor is designed, devel oped and manufactured in the China.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameter
| Measurement range: | 0 to 10,000 ppm O₂ | Operating pressure range | 0.5-2bar absolute |
| Electrical connector: | 2xslip-rings on PCB | Pressure dependency | Partial Pressure |
| Initial output signal: | 600μA±120μA ambient air | Operating temperature | 0 To 50℃ |
| Response times(in op- eration): | <180 s from 10,000 ppm | Flow rate | 0-2.5 Lpm |
| down to 1,000 ppm | Temperature compensation | None | |
| <10 min from 1,000 ppm | Weight | Approximately 35g | |
| down to250 ppm | Storage duration： | <3 months | |
| Linearity error: | ±2 % of signal | Sensor lifetime: | 1 year, depending on |
| Drift (% signal month)： | <1% | humidity and O₂ | |
| Humidity non-con- densing： | 0-99% RH | Material in contact with Media: | PV DF, PT FE, stainless steel |
| Linearity： | ± 1% FS | Expected life： | 24 Months |
Note: Use sensor immediately after removing from the packaging. After removing, do not leave the sensor in air for an extended period of time. Failure to do so may have a negative impact on its performance and life.
Oxy-333-XL Replaces: AII XLT-12-333
