Oxygen sensor Oxy-L-2C Replaces Teledyne Oxygen sensor
Oxygen Sensor Oxy-L-2C Replaces: Teledyne L-2C Part # C06689-L2C

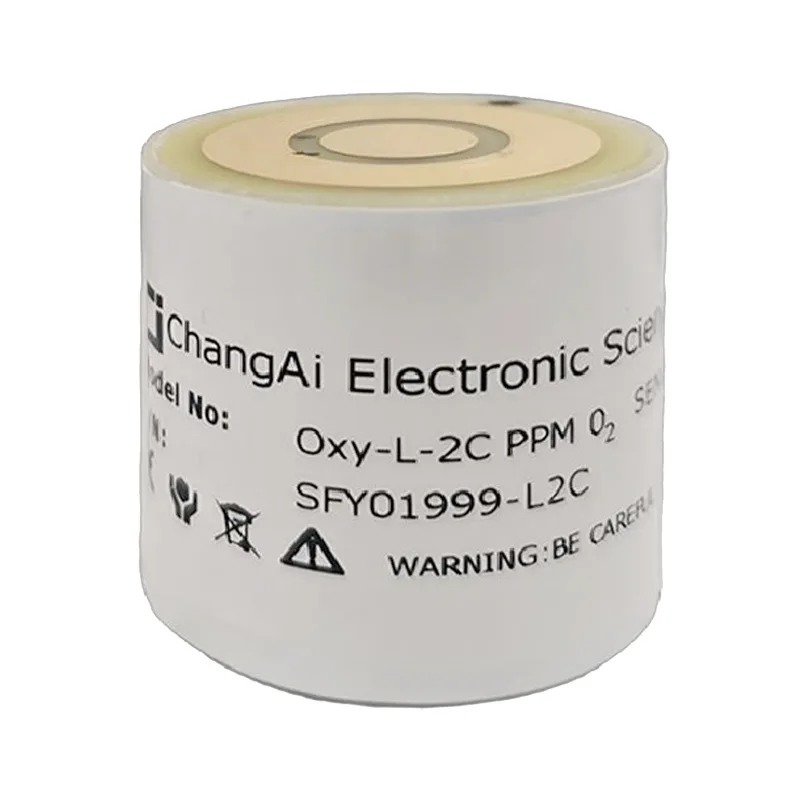

OxyTrace Oxy-L-2C PPM Oxygen Sensor
ChangAi Model Oxy-L-2C Trace PPM O₂ sensor is a drop-in replacement to Teledyne Model C6689-L-2C Oxygen sensor. This sensor has a larger electrolyte reservoir and hence offer a much longer sensor life compared to the standard PPM O₂ sensor. This sensor is ideal for very dry gas streams and gas streams at temperature above 50 °C. Sensor is designed, developed and manufactured in China.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameter
| Measurement range: | 0 to 10,000 ppm O₂ | Operating pressure range | 0.5-2bar absolute |
| Electrical connector: | 2xslip-rings on PCB | Pressure dependency | Partial pressure |
| Initial output signal: | 460μA±120μA ambient air | Operating temperature | 0 to 50℃ |
| Response times(in op- eration): | <180 s from 10,000 ppm | Flow rate | 0-2.5 LPM |
| Down to 1,000 ppm | Temperature compensation: | None | |
| <10 min from 1,000 ppm | Weight | Approximately 35g | |
| down to 250 ppm | Storage duration | <3 months | |
| Linearity error: | ±2 % of signal | Sensor lifetime | 1 year, depending on |
| Drift (% signal month)： | <1% | Humidity and O₂ | |
| Humidity non-con- densing： | 0-99% RH | Material in contact with Media: | PV DF, PT FE, stainless steel |
| Linearity： | ± 1% FS | Expected life： | 24 Months |
Note: Use sensor immediately after removing from the packaging. After removing, do not leave the sensor in air for an extended period of time. Failure to do so may have a negative impact on its performance and life.
Oxy-L-2C Replaces:Teledyne L-2C Part # C06689-L2C
