Oxygen sensor Oxy-550-XL Replaces Teledyne Oxygen sensor
Oxygen Sensor Oxy-550-XL Replaces: Teledyne B2C-XL, XLT-12-333, OX-2

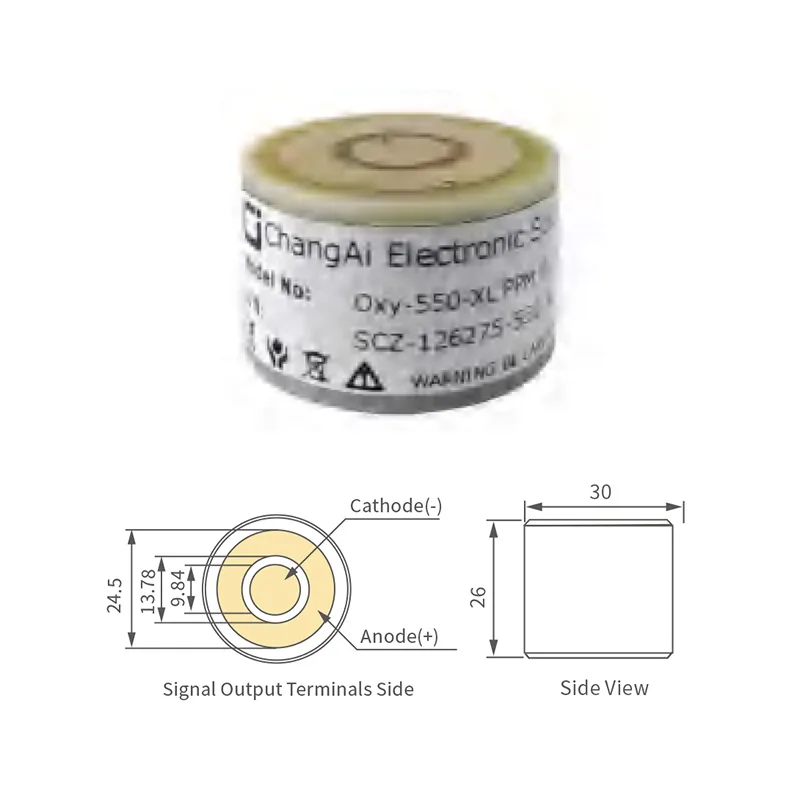

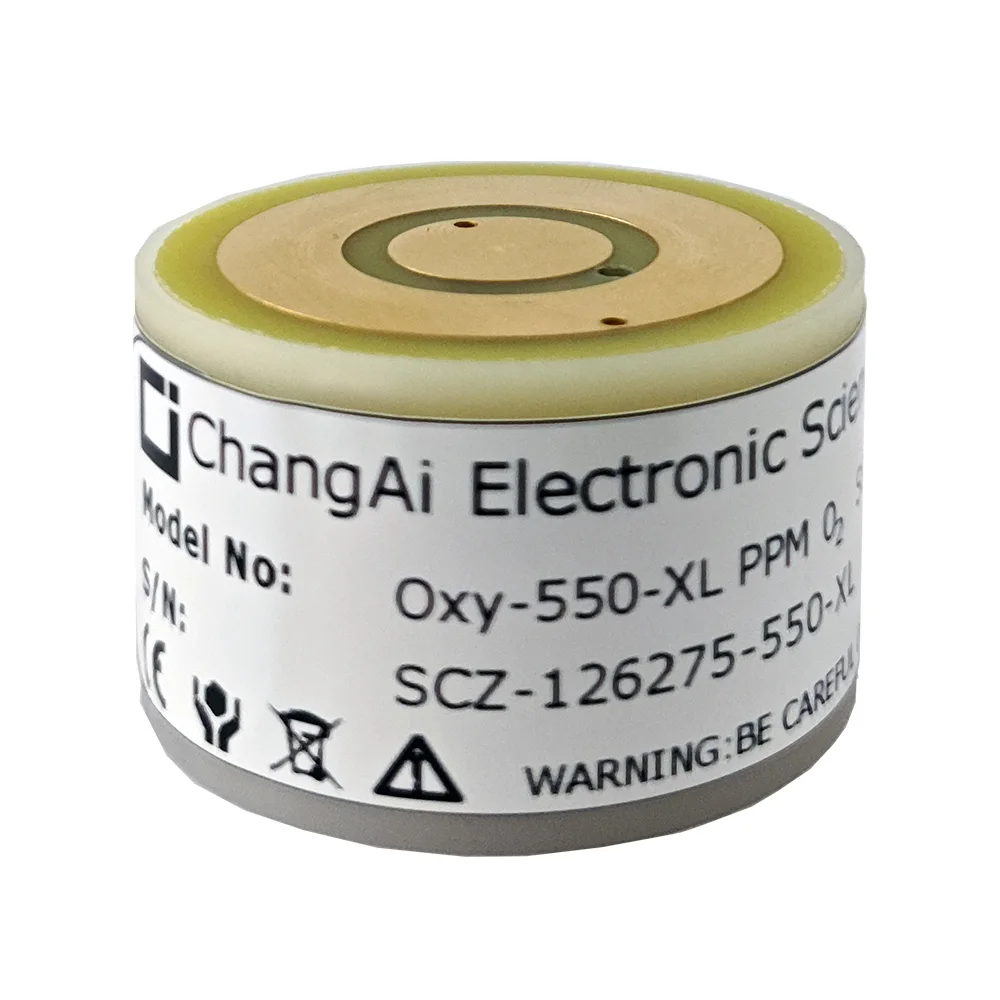

Oxygen sensor Oxy-550-XL
Electrochemical Galvanic Trace O₂ Sensor for PPM Oxygen Measurement (zero CO₂ cross-sensitivity)
Oxy-550-XL PPM Oxygen Sensor is a galvanic type micro-fuel cell specific to oxgen is a drop-in replacement to Teledyne B-2CXL. Proprietary electrolyte formulation enhances sensor performance at extreme ends of recommended temperature range and offers quick recovery to low PPM level after Oxygen surge. Sensor is designed, developed and manufactured in China.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameter
| Measurement range: | 0 to 10,000 ppm O₂ | Operating pressure range | 0.5-2bar absolute |
| Electrical connector: | 2xslip-rings on PCB | Pressure dependency | Partial Pressure |
| Initial output signal: | 460μA±120μA ambient air | Operating temperature | 0 To 50℃ |
| Response times(in op- eration): | <180 s from 10,000 ppm | Flow rate | 0-2.5 Lpm |
| down to 1,000 ppm | Temperature compensation | None | |
| <10 min from 1,000 ppm | Weight | Approximately 35g | |
| down to250 ppm | Storage duration： | <3 months | |
| Linearity error: | ±2 % of signal | Sensor lifetime: | 1 year, depending on |
| Drift (% signal month)： | <1% | humidity and O₂ | |
| Humidity non-con- densing： | 0-99% RH | Material in contact with Media: | PV DF, PT FE, stainless steel |
| Linearity： | ± 1% FS | Expected life： | 24 Months |
Note: Use sensor immediately after removing from the packaging. After removing, do not leave the sensor in air for an extended period of time. Failure to do so may have a negative impact on its performance and life.
Oxy-550-XL Replaces: Teledyne B-2CXL, XLT-12-333, OX-2
