Oxygen sensor Oxy-550 Replaces Teledyne Oxygen sensor

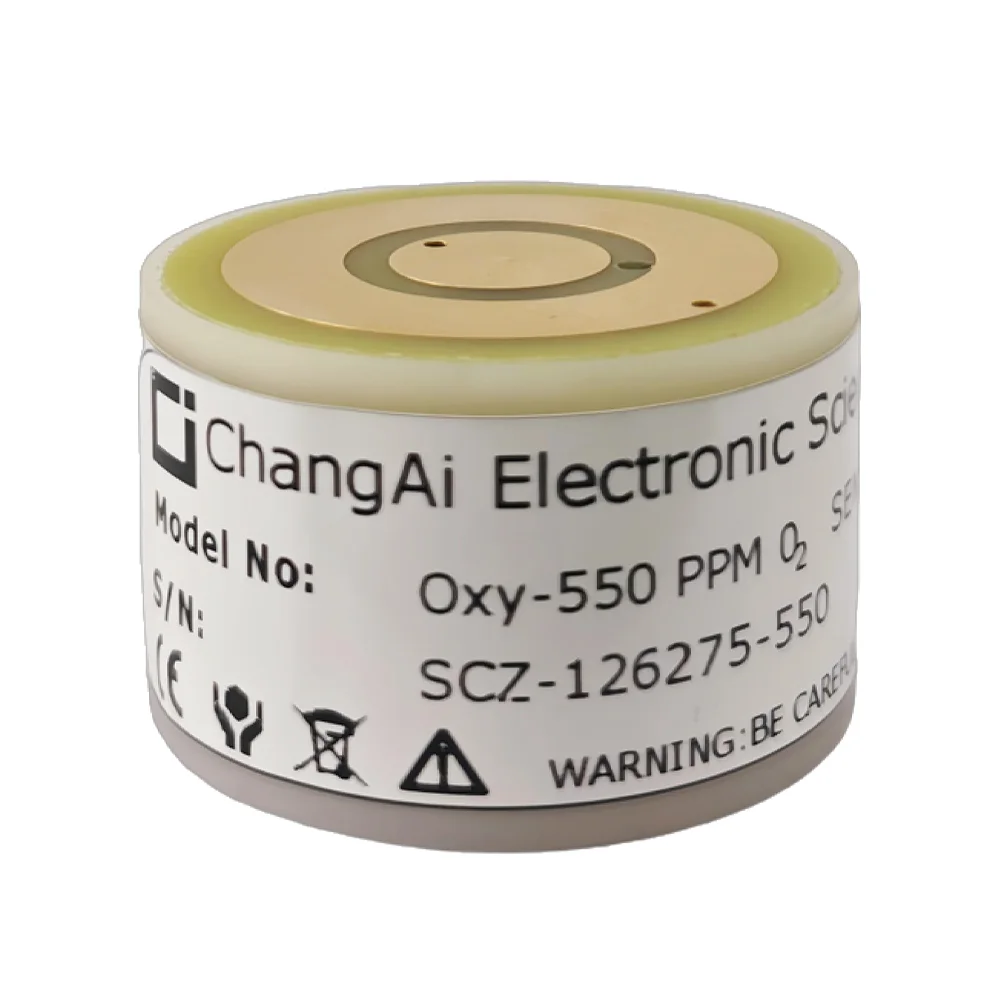

Oxy-550 PPM Oxygen Sensor
Electrochemical Galvanic Trace O₂ Sensor for PPM Oxygen Measurement
Oxy-550 PPM Oxygen Sensor is a galvanic type micro fuel cell specific to Oxygen and is a drop-in replacement to Teledyne B-2C. Proprietary electrolyte formulation enhances sensor performance at extreme ends of recommended temperature range and offers quick recovery to low PPM level after Oxygen surge. Sensor is designed, developed and manufactured in China.
Technical Parameter
| Measurement range: | 0 to 10,000 ppm O₂ | Operating pressure range | 0.5-2bar absolute |
| Electrical connector: | 2xslip-rings on PCB | Pressure dependency | partial pressure |
| Initial output signal: | 460μA±120μA ambient air | Operating temperature | 0 to 50℃ |
| Response times(in op- eration): | <180 s from 10,000 ppm | Flow rate | 0-2.5 LPM |
| down to 1,000 ppm | Temperature compensation | none | |
| <10 min from 1,000 ppm | Weight | approximately 35g | |
| down to250 ppm | Storage duration | <3 months | |
| Linearity error: | ±2 % of signal | 1 year, depending on | |
| Drift (% signal month)： | <1% | Sensor lifetime: | humidity and O₂ |
| Humidity non-con- densing： | 0-99% RH | Material in contact with Media: | PV DF, PT FE, stainless steel |
| Linearity： | ± 1% FS | Expected life： | 24 Months |
Note: Use sensor immediately after removing from the packaging. After removing, do not leave the sensor in air for an extended period of time. Failure to do so may have a negative impact on its performance and life.
Oxy-550 Replaces: Teledyne B-2C AII: PSR-12-223 AMI T1, GE OX-1/-5
