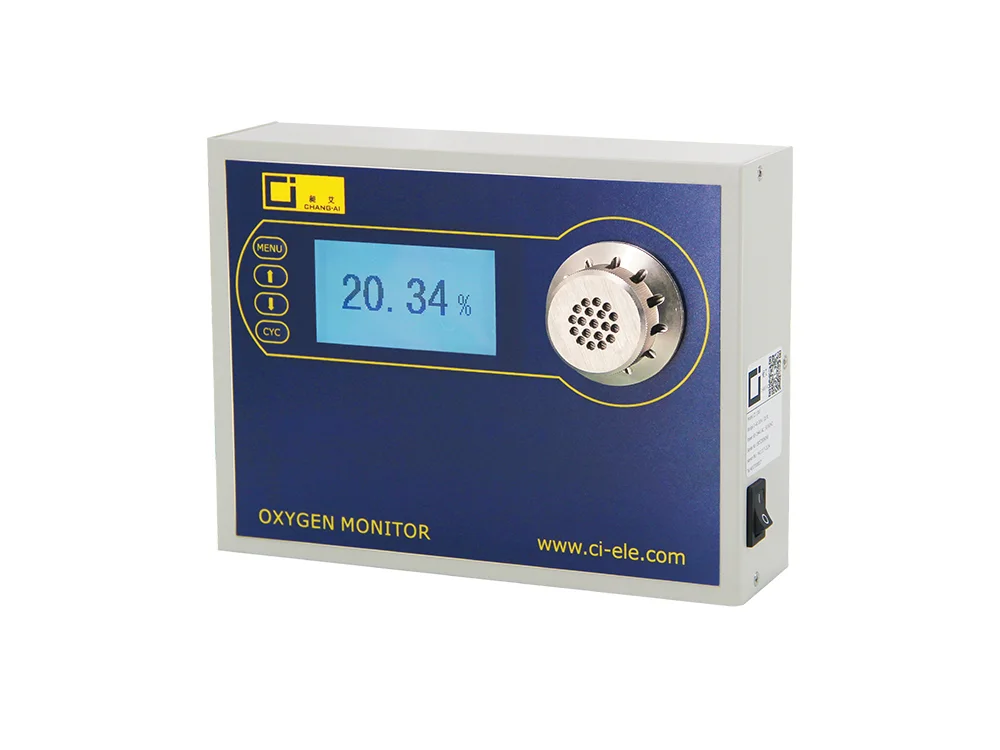

Brand CI1300 Oxygen monitor
The functionality of the product is tested repeatedly.
CI1300 Oxygen monitor Product Features
3D ion flow sensor, long life, high precision,fast response time;
It can be used to measure oxygen concentration in nitrogen and oxygen mixture gas;
Alarm value in the full range of arbitrary Settings, can choose single point control or range control;
Full Chinese man-machine dialogue menu, intuitive and convenient operation;
A variety of communication commands, can be very convenient through the upper computer to control the instrument or data exchange.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 0~40% O₂ |
Measurement method | Gas diffusion |
Linear error | ±1.5%FS |
Repeatability | ±1%FS |
Stability | ±1%FS/7d |
Response time | T₉₀<30s |
Power supply | AC 220V±10%, 50/60Hz |
Communication | A group of RS485 |
Analog singal | 4-20mA/0-20 mA/0-10V output |
Ambient TEMP | 0~+45℃ |
Ambient humidity | <80％RH |
Gas composition | Nitrogen oxygen mixtures |
Installation | Wall-mounted |
Instrument weight | About 1.4kg net, about 2.1kg packaged |
CHANG AI's performance is in the leading position both inside and outside.
