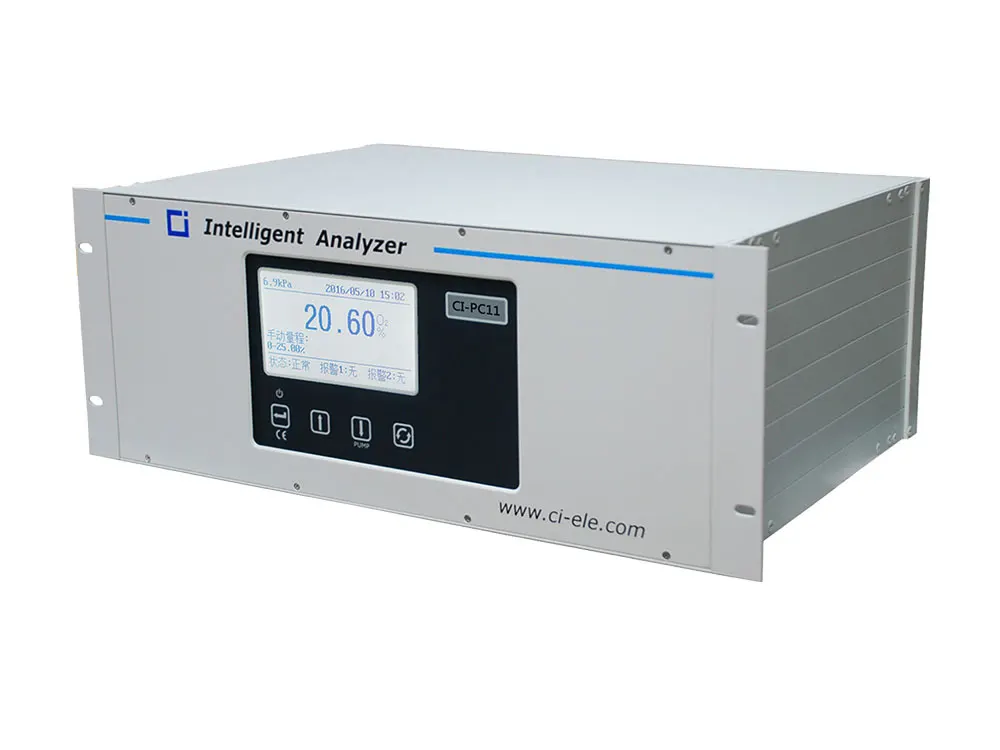

Top CI-PC11 Frequency conversion ion flow oxygen analyzer
CHANG AI is accomplished with the help of our sophisticated workers.
CI-PC11 Frequency conversion ion flow Oxygen Analyzer Product Features
Microprocessor as the core, using frequency conversion ion current sensor as the measuring unit, with intelligence, good stability, high precision, long calibration cycle and so on;
Menu lock switch: prevent misoperation to change the
parameters of the analyzer affecting its normal operation;
When the oxygen concentration deviates from the alarm value, an alarm will be issued, and the alarm value can be set arbitrarily in the full range.
Technical Index
| Sensor | Frequency conversion ion flow sensor | |
| Measuring range | 0~25.00% O₂ | |
| Linear error | 0.01~99.9ppm | 士10ppm |
| 100~999.9ppm | 士3%FS | |
| 1000~9999ppm | 士3%FS | |
| 1.00%~25.00% | 士3% of measured value | |
| Repeatability | 0.01~99.9ppm | 士5ppm |
| 100~999.9ppm | 士1.5%FS | |
| 1000~9999ppm | 士1.5%FS | |
| 1.00%~25.00% | 士1.5% of measured value | |
| Stability | 0.01~99.9ppm | 士5ppm/7d |
| 100~999.9ppm | 士1.5%FS/7d | |
| 1000~9999ppm | 士1.5%FS/7d | |
| 1.00%~25.00% | 士1.5%/7d of measured value | |
| Response time | T₉₀<20s(after full preheating) | |
| Power supply | AC 100~240V, 50/60Hz | |
| Ambient TEMP. | -10~+45℃ Ambient humidity:<90%RH | |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet | |
| should be atmospheric conditions) | ||
