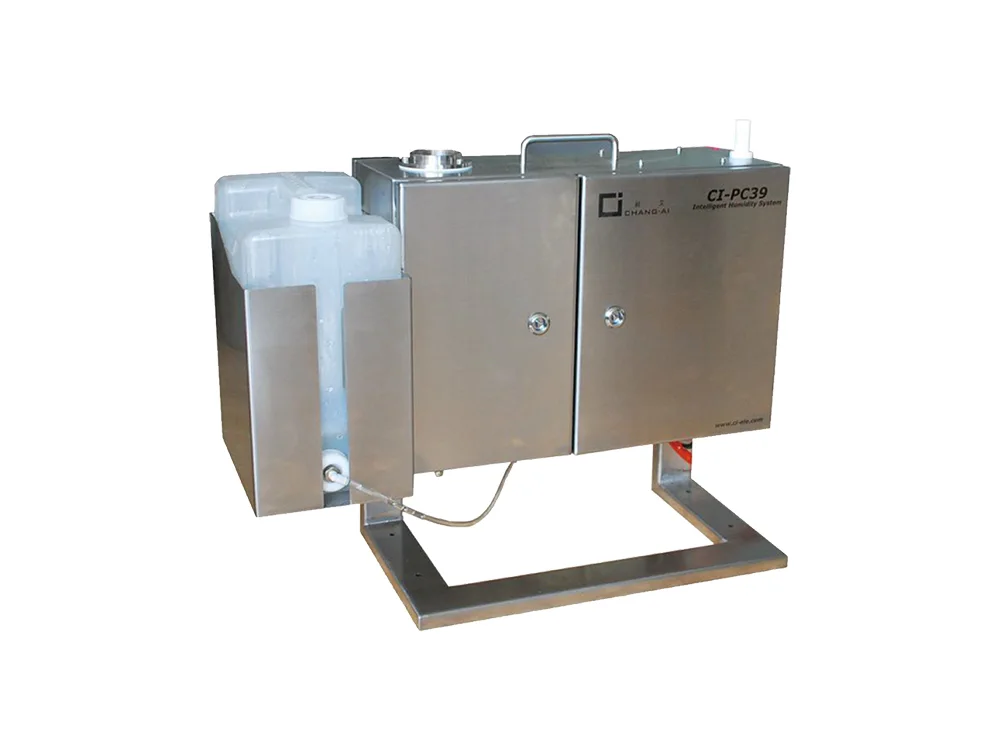

Reliable CI-PC39 High temperature humidity analysis system
The product has significant development advantages compared to other product.
CI-PC39 High temperature humidity analysis system Product Features
Humidity control function: According to the humidity and concentration control requirements of the test, the system outputs a control signal to adjust the opening of the proportional valve, thereby controlling the gas flow in the process to obtain and maintain the humidity range required by the tested environment. Its advantage is to maintain the maximum quality of the end product with the minimum gas consumption, reducing scrap and rework;
Suitable for measuring water content in air or other gases: In many processes, process humidity needs to be monitored in order to ensure product quality, improve energy efficiency or achieve emission reduction targets.
Technical Index
| Humidity measurement | |
| Principle | Constant jet method |
| Sensor | Temperature sensor |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| Response time | T₉₀<90s（10~190g/kg） |
| Measuring range | |
| Dry TEMP. | 0~140℃ |
| Wet TEMP. | 0~140℃ |
| External TEMP. | 0~200℃ |
| Absolute pressure | 500~1500hPa |
| Dewpoint TEMP. | +20~+100℃ |
| Volume ratio | 2~100% |
| Absolute humidity | 15~1000g/kg |
| Specific humidity | 15~1000g/kg |
| Enthalpy | 35~1000kJ/kg |
| Water pressure | 10~1000hPa |
| Saturation difference | 0~1000hPa |
