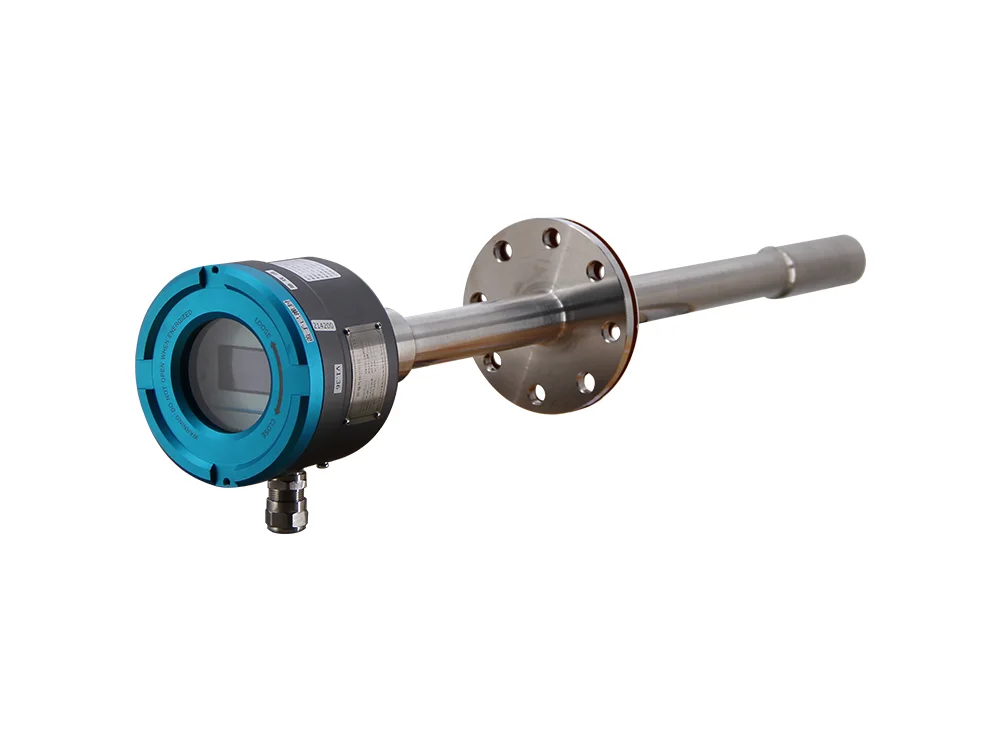

High quality CI-PC156 Explosion-proof high temperature humidity analyzer
The product discloses a number of advantages, such as long-lasting stable performance, long service life, and so on.
CI-PC156 Explosion-proof high temperature Humidity Analyzer Product Features
Combined with microcontroller and digital processing technology, the analyzer has a complete self-diagnosis function, which is intelligent, stable and reliable;
The ion current humidity sensor is used as the measurement unit, with high precision and long calibration period;
Using capacitive touch buttons, the buttons are sensitive, reliable and easy to operate;
Menu lock switch: to prevent misuse from affecting the normal operation of the analyzer;
Integrated structure design, easy installation, zero maintenance.
Technical Index
| Sensor | Ion flow humidity sensor |
| Measuring range | 0~40.00%vol H₂O |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| EX-Mark | Ex d IIC T6 Gb |
| IP Grade | IP65 |
| Consumption | High temperature type:<20VA |
| Low temperature type: <60VA | |
| Ambient TEMP. | Please refer to page 38, CI-PC152 |
| Storage | TEMP.:-20~+60℃ Humidity:<90%RH |
| Sample gas pressure | Atmospheric conditions±10%(during ventilation only) |
| 800~1000ml/min(during ventilation only) | |
| Sample gas flow | Quantity: 2 groups |
| Analog singal | Output: 4-20mA/ 0-20mA/ 0-1V/ 0-5V/ 0-10V/ 1-5V, can be set mode freely |
| Load:<500Ω |
