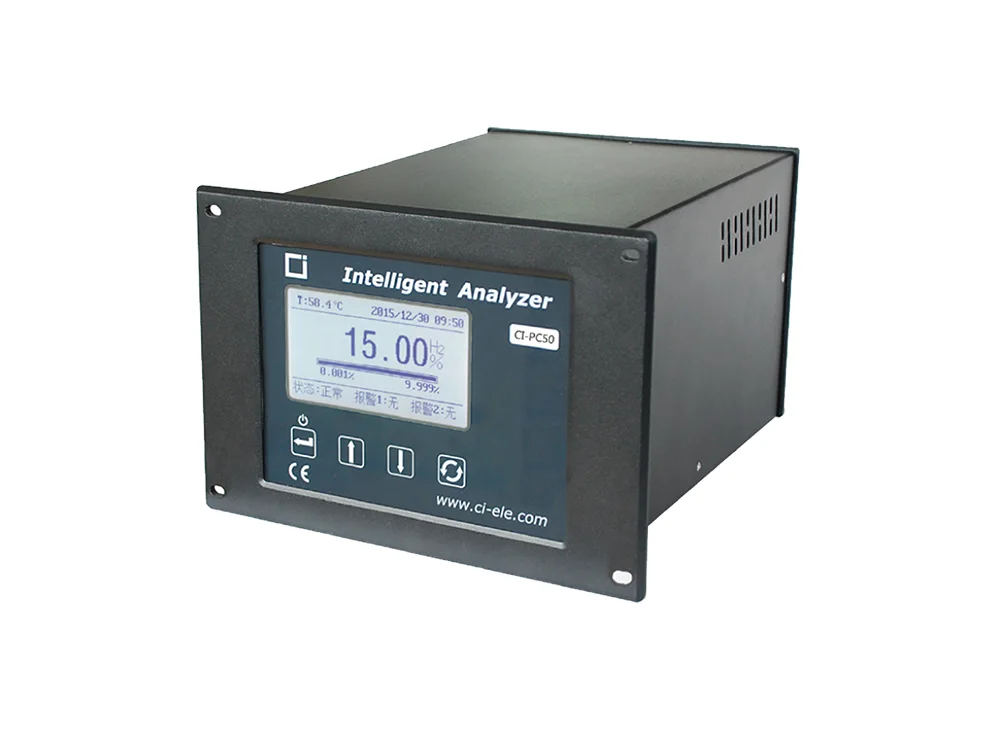

Best CI-PC50 Online thermal conductivity analyzer
All its technical details are investigated to make sure the right quality of the product.
CI-PC50 Online thermal conductivity analyzer Product Features
Using advanced thermal conductivity sensor as the measurement unit, using advanced digital processing technology, anti-cross-interference, high stability, strong reliability, etc.;
The front of the analyzer is covered with a tempered glass, which is not only beautiful, but also has a good protective effect;
The analyzer has two groups of interfering gas compensation signal input ports, which can eliminate the influence of interfering gases on measurement accuracy.
Technical Index
| Sensor | Thermal conductivity sensor |
| Measuring range | Please refer to page 50, CI-PC53 |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| Response time | T₉₀<10s |
| Background gas | N₂、Ar、CO₂、CH4 etc. (must be specified when ordering) |
| Power supply | AC 100~240V, 50/60Hz, analyzer power<25VA |
| Communication | RS485 (standard)/RS232 (optional) |
| Ambient TEMP. | -10~+45℃ |
| Ambient humidity | <90%RH |
| Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, can be set mode freely |
| 6 groups, relay contact capacity: DC 24V, 0.2A | |
| Interference compensation | Input signal mode:4-20mA/0-20mA/0-1V/ |
| 0-5V/0-10V/1-5V | |
| Purpose: Disturbing gas compensation |
The product is tested with the vigilance of our skilled professionals who have a clear understanding of the quality standards in the industry.
