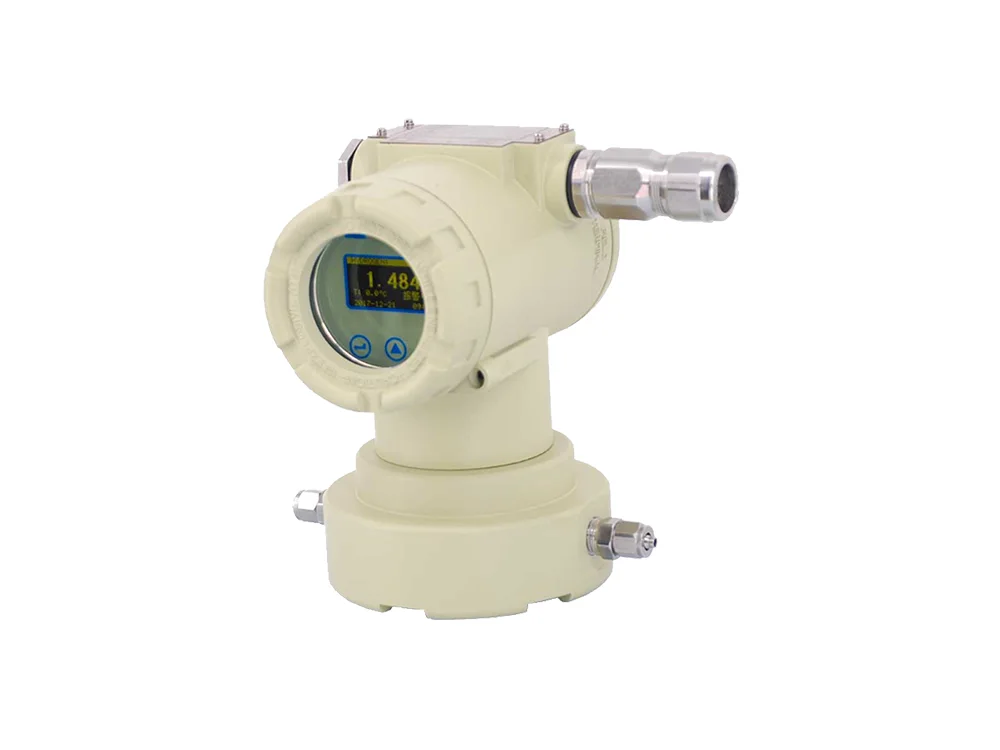

Reliable CI-PC551-2 Explosion-proof thermal conductivity analyzer
The rigorous testing procedures ensure that the product quality is consistently at its best.
CI-PC551-2 Explosion-proof thermal conductivity analyzer Product Features
Combining microcontroller with digital processing technology, anti-cross interference, stable and reliable;
Using capacitive touch buttons, the buttons are sensitive, reliable and easy to operate;
With infrared remote control function, the analyzer can be operated by remote control;
Menu lock switch: prevent misoperation from changing analyzer parameters and affecting its normal operation;
When the gas concentration deviates from the alarm value, an alarm will be issued, and the alarm value can be set arbitrarily within the full range.
Technical Index
| Sensor | Thermal conductivity sensor |
| Measuring range | Please refer to page 50, CI-PC53 |
| Linear error | ±2%FS |
| Repeatability | ±1%FS |
| Stability | ±1%FS/7d |
| Response time | T₉₀<30s |
| Resolution | 0.01% |
| EX-Mark | Ex d IIB T6 Gb |
| IP Grade | IP65 |
| Power supply | DC 24V,1A |
| Consumption | <20VA |
| Communication | RS485 or RS232 |
| Analog singal: | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
| 1-5V, can be set mode freely | |
| Load:<500Ω | |
| Ambient TEMP. | -10~+45℃ Ambient humidity:<90%RH |
| Sample gas flow | 200~400ml/min |
| Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
offers exceptional performance and high quality product.
