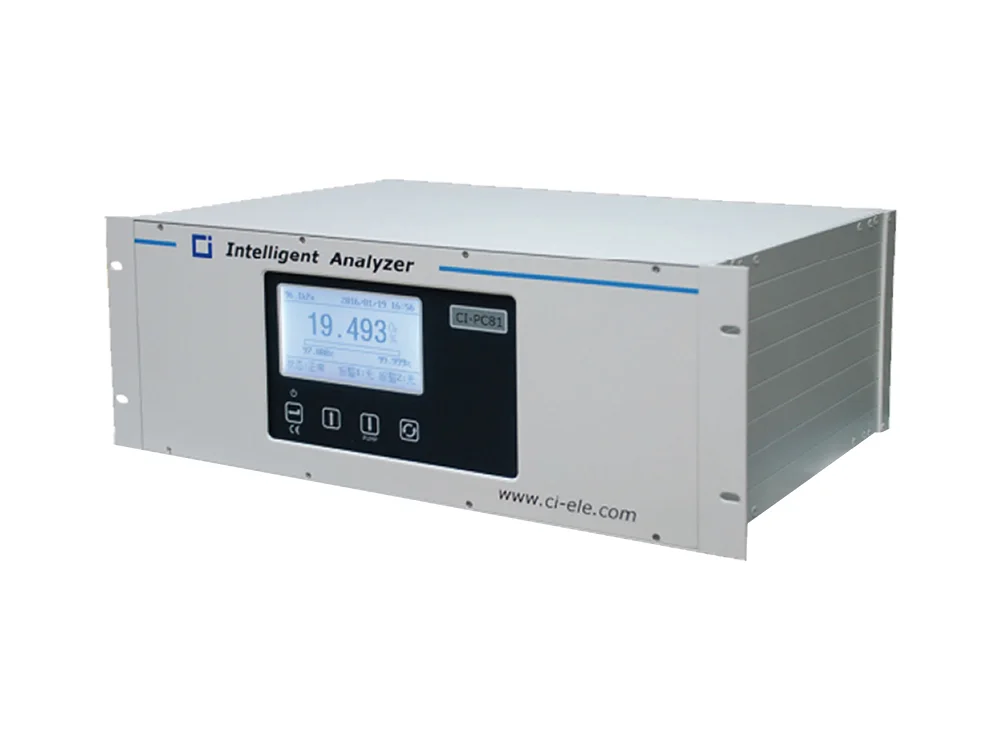

High quality CI-PC81 High content oxygen analyzer
This product has the advantages that other products can not compare, such as long life, stable performance.
CI-PC81 High content Oxygen Analyzer Product Features
Double pool thick film co-firing technology, long service life of the sensor;
Automatic calibration function: the analyzer has automatic calibration function, according to the method specified by the manufacturer to connect the standard gas, can automatically complete the calibration of the analyzer;
Pressure detection function: test the internal relative pressure of the gas path, determine whether the gas path is blocked, when the sample gas pressure exceeds the set range, it will send an alarm.
Technical Index
Sensor | 3D ion flow oxygen sensor |
Measuring range | 10~97.00%/ 99.99%，97%~99.99% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5%/7d |
Response time | T₉₀<20s |
Power supply | AC 100~240V, 50/60Hz |
Consumption | <35VA |
Data storage | SD card (standard)/U disk (optional) |
Communication | RS485(standard)/RS232(optional) |
Analog signal | 1group,4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
1-5V (You can set the mode freely) | |
Load:<500Ω | |
External input | 5 groups of control signals DC 9-28V |
Ambient TEMP | -10~+45℃ Ambient humidity:<90%RH |
Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Dimensions | L×W×H=483mm×300mm×177mm |
The product is accredited in all aspects, such as long service life, stable performance, and so on.
