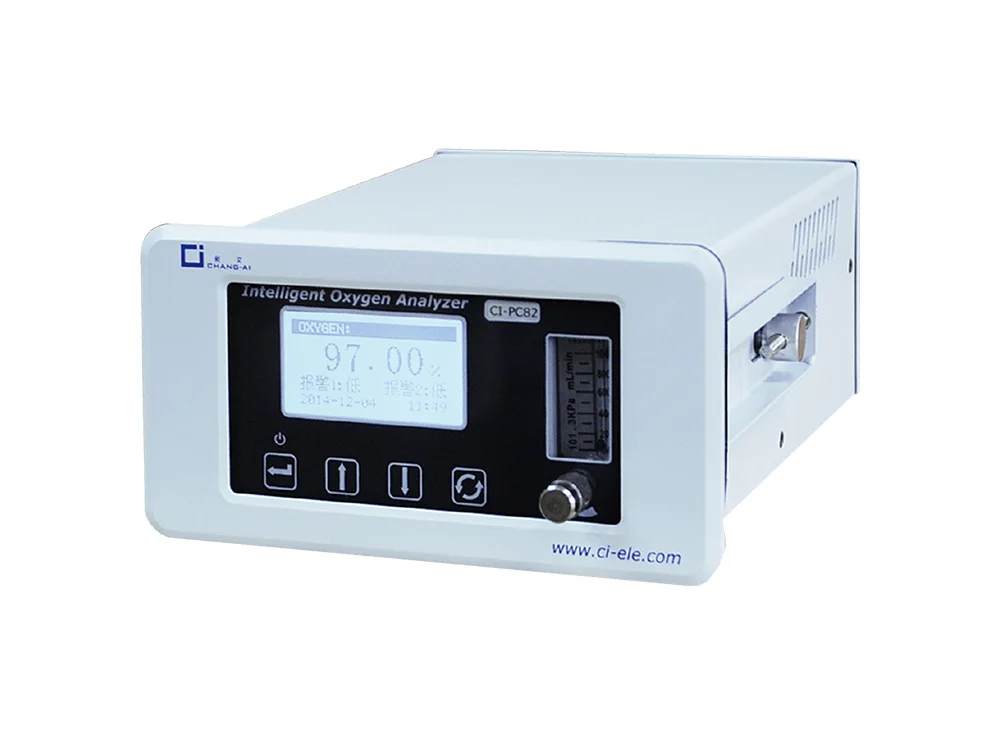

Reliable CI-PC82 High content oxygen analyzer
Strict quality inspection is carried out on different quality parameters in the whole production process to ensure that the products are completely free from defects and have good performance.
CI-PC82 High content Oxygen Analyzer Product Features
It has the characteristics of intelligence, good stability, high reliability, long calibration cycle, etc.;
Window surface covered with a toughened glass,enhance the impact protection of Windows；
The latest touch key technology,easy to operate,key long service life；
Menu lock switch: to prevent the impact of misoperation on thenormal operation of the analyzer;
When the oxygen concentration deviates from the alarm value, the alarm value can be set in the full range of arbitrary.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5%/7d |
Response time | T₉₀<60s(after full preheating) |
Power supply | AC 100~240V, 50/60Hz |
Communication | RS485(standard)/RS232(optional） |
Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, can be set mode freely |
Ambient TEMP | -10~+55℃ |
Ambient humidity | <85%RH |
Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Instrument life | More than 5 years(normal use) |
More than 10 years(normal use) | |
Dimensions | L×W×D=188.5mm×98.5mm×207.5mm |
We regard quality as our top priority and ensure reliable product quality.
