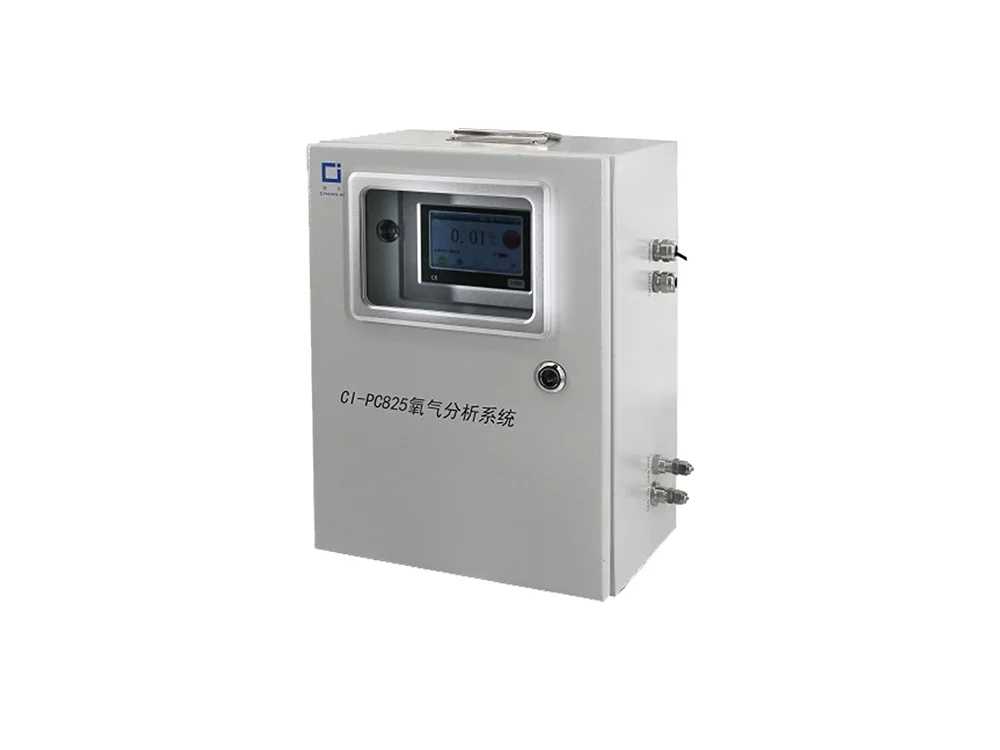

Best CI-PC825 High content oxygen analyzer
Before delivery, our professional team carries out a detailed inspection to ensure the high quality product.
CI-PC825 High content Oxygen Analyzer Product Features
High precision pressure automatic compensation, reduce the impact of pressure on the measurement accuracy;
Convenient data storage function: the analysis system has the function of timing automatic storage of test data, easy to understand the test situation;
When the oxygen concentration deviates from the alarm value, the alarm value can be set in the full range of arbitrary;
Communication function: using RS485 (standard)/RS232(optional) two-way communication.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂,97%~99.99% O₂ |
Linear error | ±2% FS |
Repeatability | ±1% FS |
Stability | ±1% FS/7d |
Response time | T₉₀<60s(after full preheating） |
Pipe connection D | standard ¼-Φ6.5 Quick screw connectors (replaceable) |
Power supply | AC 100~240V，50/60Hz |
Consumption | <25VA |
Ambient TEMP. | Working environment:-10~+50℃ |
Storageﾠandﾠtransportationﾠenvironment: | |
-20~+60℃ | |
Ambient humidity | <90%RH |
Each product is subjected to stringent quality checks under the supervision of qualified professionals.
