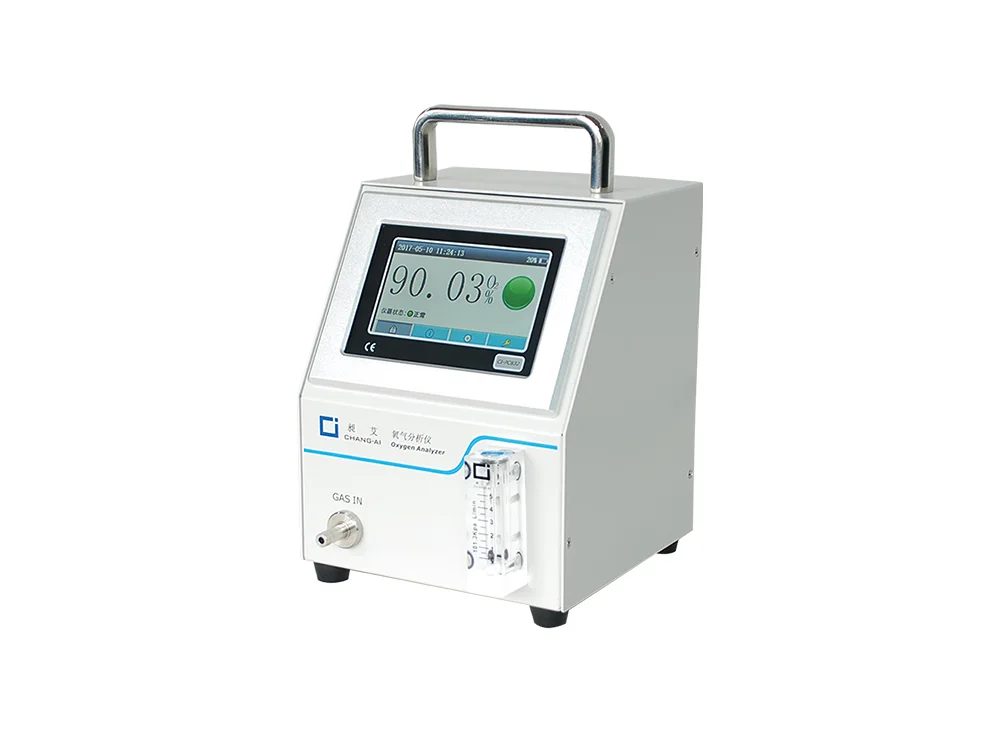

High quality CI-PC832 Portable high content oxygen analyzer
conducts real-time monitoring and feedback on the quality of the entire manufacturing process.
CI-PC832 Portable high content Oxygen Analyzer Product Features
With microprocessor as the core, 3D ion flow sensor as the measuring unit, with intelligence, good stability, high precision, long calibration cycle and so on;
Window surface covered with a toughened glass, enhan-ce the impact protection of windows;
Built-in large capacity lithium battery, normal use, standby time is more than 3.5 hours;
High precision pressure automatic compensation, reduce the impact of pressure on the measurement ac-curacy;
Convenient data storage function.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% |
Linear error | ±1% FS |
Repeatability | ±0.5% FS |
Stability | ±0.5% FS/7d |
Response time | T₉₀<20s(after full preheating） |
Measurement method | Portable |
Power supply | AC 100~240V,50/60Hz |
Consumption | <25VA |
Working TEMP | -10~+45℃ Humidity:<80%RH |
Intake pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Optional negative pressure or slightly positive pressure when operating the air pump. | |
Intake flow | 400~600ml/min |
Air inlet | Standard1/4-Φ6 quick coupling (replaceable) |
Connection | Φ6 stainless steel pipe |
This product is extensively patronized by customers in this field.
