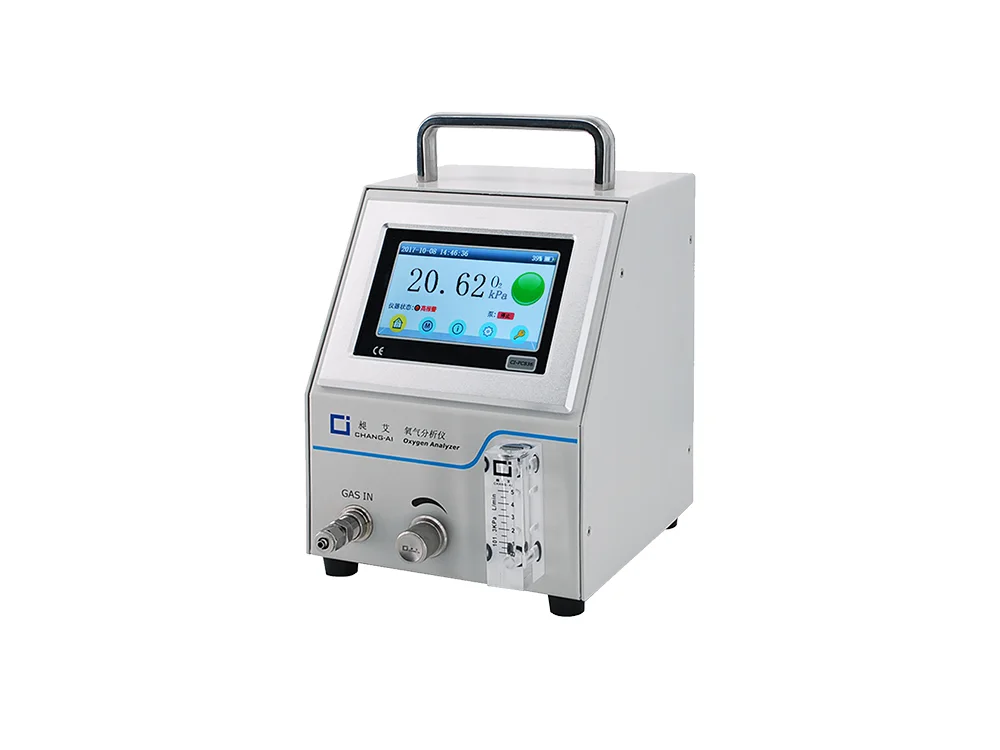

Best CI-PC836 Oxygen content/oxygen partial pressure analyzer
The quality of the product stays in line with current regulation and standard.
CI-PC836 Oxygen content/oxygen partial pressure analyzer Product Features
Using 4.3"color touch screen as the display window and input device for human-computer interaction, the display content is rich, intuitive, easy to operate;
Windows surface covered with a toughened glass, enhance the impact protection of Windows;
Built-in large capacity lithium battery, normal use, standby time is more than 3.5 hours;
High precision pressure automatic compensation, reduce the impact of pressure on the measurement accuracy.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 1~40kPa O₂ |
Linear error | ±1% FS |
Repeatability | ±0.5% FS |
Stability | ±0.5% FS/7d |
Response time | T₉₀<15s |
Power supply | AC 220V±, 50/60Hz |
Consumption | <15VA |
Sample gas TEMP. | 0~+50℃ |
Intake pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Intake flow | 400~600ml/min |
Air inlet | Standard1/4-Φ6 PTFE pipe joint (replaceable) |
Communication | RS485 or RS232 |
Alarm | Alarm point:1 |
Relay contact capacity: DC 24V, 0.2A | |
Analog output | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, can be set mode freely |
Load:<500Ω |
The product performs well and has a long service life and internationally-proven quality.
