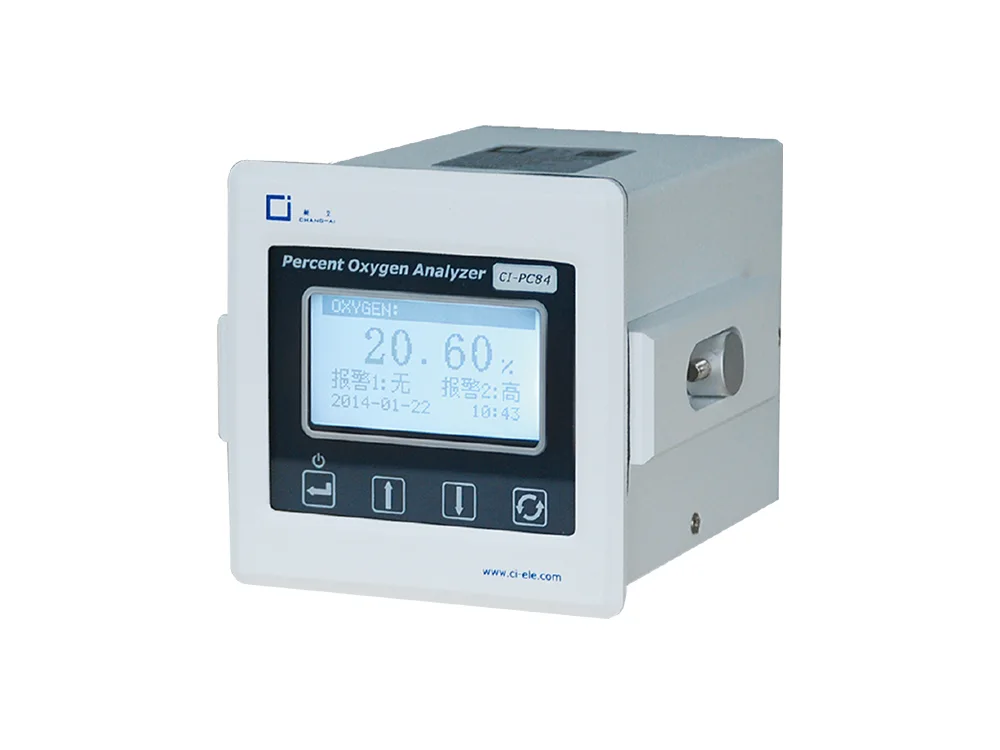

Brand CI-PC84 High content oxygen analyzer
Product quality has been improved due to the implementation of a strict quality management system.
CI-PC84 High content Oxygen Analyzer Product Features
3D ion flow sensor, high precision, good long-term stability,longer service life;
Window surface covered with a toughened glass, enhance the impact protection of Windows;
Capacitive touch key, key sensitive, reliable, simple operation;
Menu lock switch: to prevent the impact of misoperation on the analyzer;
Data storage function: time record test data and can quickly query the stored data;
When the oxygen concentration deviates from the alarm value, the alarm value can be set in the full range of arbitrary.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5%FS/7d |
Response time | T₉₀<15s |
Power supply | AC 100~240V, 50/60Hz |
Consumption | <20VA |
Ambient TEMP | -10~+55℃ |
Ambient humidity | <85%RH |
Sample gas pressure | Atmospheric conditions±10% (Gas outlet |
should be atmospheric conditions) | |
Sample gas flow | 400~600ml/min |
Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/ |
1-5V, can be set mode freely | |
Communication | RS485(standard)/RS232(optional) |
Sensor life | More than 5 years (normal use) |
Instrument life | More than 10 years (normal use) |
In the fierce market competition, has won the recognition of domestic and international markets with CHANG AI.
