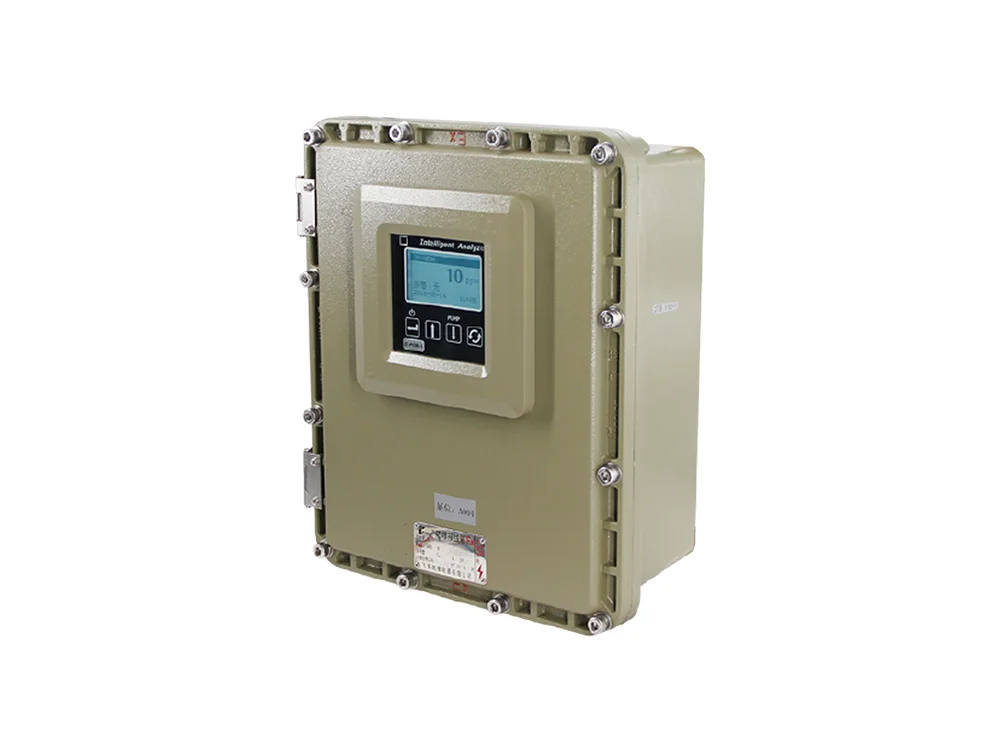

Custom CI-PC851-1 Explosion-proof high content oxygen analyzer
The product is of a very high standard quality, well-recognized among customers.
CI-PC851-1 Explosion-proof high content Oxygen Analyzer Product Features
Microprocessor as the core, good long-term stability, high reliability;
Menu lock switch: prevent misoperation to change the analyzer parameters and affect its normal operation;
Data storage: support U disk and SD card data storage, data storage capacity big Е facilitate users for data pro-cessing and analysis;
Internal timing data storage and convenient user quick-ly see test data.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5%FS/7d |
Response time | T₉₀<20s |
IP Grade | IP65 |
EXmark | Ex d IIB T6 Gb |
Power supply | DC 24V |
Consumption | <25VA |
Communication | RS485(standard)/RS232(optional) |
Ambient TEMP | 0~+45℃ |
Ambient humidity | <80%RH |
Sample gas flow | 400~600ml/min |
Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, can be set mode freely |
Load:<500Ω | |
Dimensions | L×W×H=300mm×200mm×175mm |
CHANG AI is of great market competitiveness.
