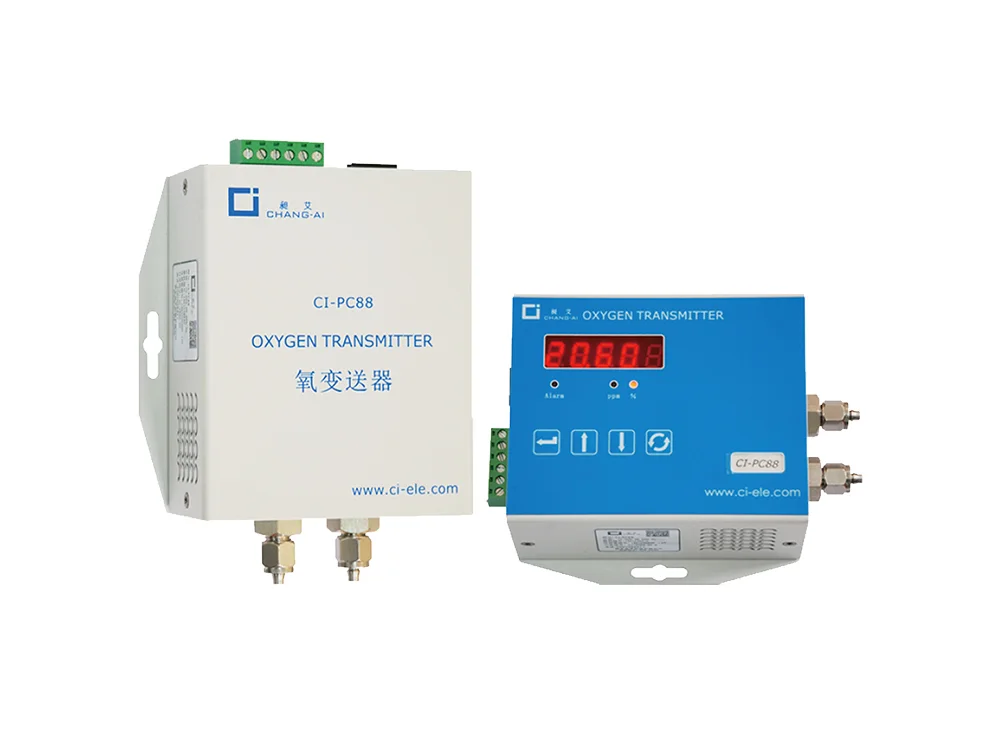

Top CI-PC88 High oxygen content transmitter
The production of CHANG AI has been completed by advanced and efficient equipment.
CI-PC88 High oxygen content transmitter Product Features
It has the characteristics of intelligence, good stability, high reliability, long calibration cycle, etc.;
The circuit adopts digital signal processing, isolation andﾠamplification,frequencyﾠinterceptﾠdesign, anti-interference ability is strong;
Menu lock switch: prevent misoperation to change the analyzer parameters and affect its normal operation;
Simple structure, easy installation and maintenance.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5%FS/7d |
Response time | T₉₀<60s(after full preheating） |
Power supply | DC 24V, power consumption≤10VA |
Ambient TEMP | -10~+55℃ |
Ambient humidity | <80%RH |
Sample gas flow | 400~600ml/min |
Analog singal | 1 group, 4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, can be set mode freely |
Communication | RS232/RS485 |
Sensor life | More than 2 years(normal use) |
Instrument life | More than 5 years(normal use) |
CHANG AI is designed adhering to the latest advanced design concept.
