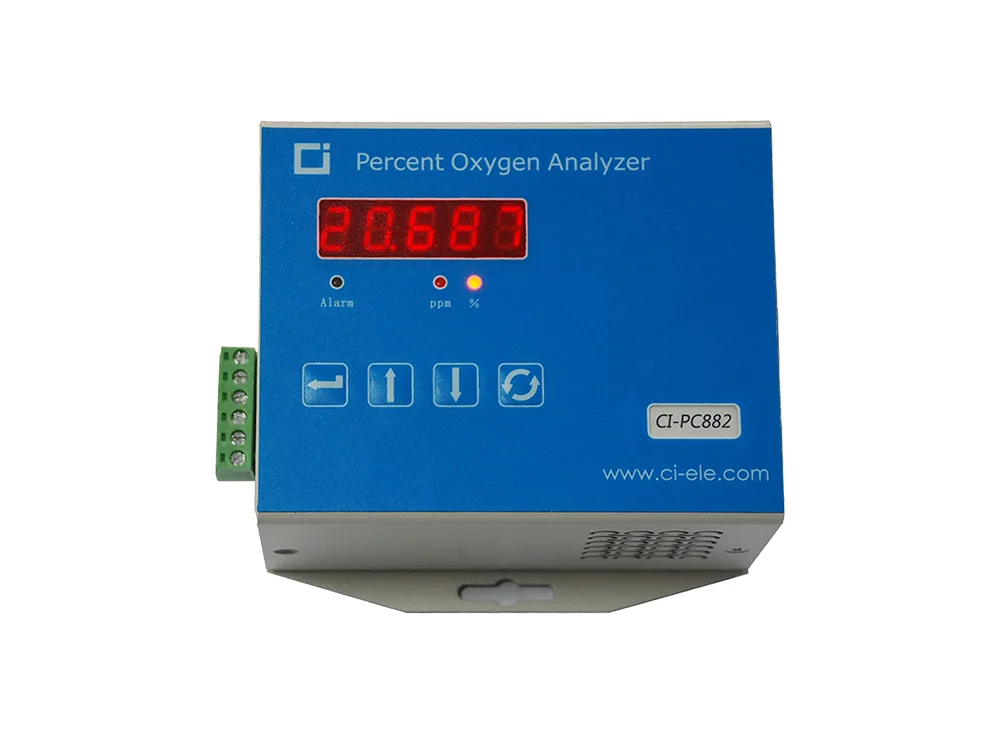

Modern CI-PC882 Environmental oxygen transmitter
The demands on this product has been increasing among the customers.
CI-PC882 Environmental oxygen transmitter Product Features
RS232/485 two-way communication function: choose the configuration of communication, with the computer or other digital communication equipment for direct communication;
Isolated analog signal output, support software switching4 -20ma/0-20 Ma/0-1v/0-5v/0-10V/1-5V analog
output mode;
Optional sensor built-in/external: according to user needs, the sensor can be placed inside the instrument, or can be an independent part, connected with the instrument through the lead.
Technical Index
Sensor | Ion flow sensor |
Measuring range | 0~40.00% O₂ |
Linear error | ±1%FS |
Repeatability | ±0.5%FS |
Stability | ±0.5% FS/7d |
Response time | T₉₀<20s (after full preheating) |
Power supply | DC 24V |
Consumption | <10VA |
Ambient TEMP | -10~+55℃ Ambient humidity:<80%RH |
Sample gas pressure | Normal pressure |
Installation mode | Bottom bracket mount |
Circuit structure | Used in non-hazardous situations |
Sensor life | More than 5 years (normal use) |
Instrument life | More than 10 years (normal use) |
Dimensions | L x W x H=120mm x 118mm x 62.5mm |
As a responsible CHANG AI manufacturer, pays more attention to the quality assurance of the product.
