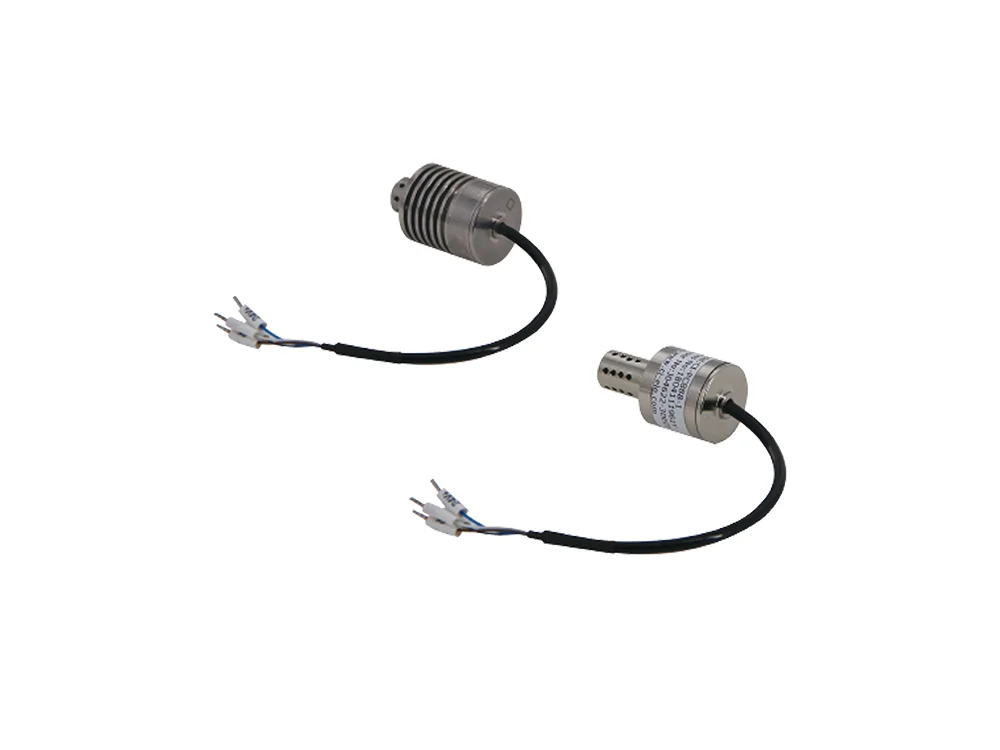

Custom CI-PC888/-1 Oxygen transmitter
Modified by several times, CHANG AI can be applied into many different places.
CI-PC888/-1 Oxygen transmitter Product Features
RS485 two-way communication function: can communicate with computer or other digital communication equipment directly;
Good performance: 3D ion flow oxygen sensor, high precision, good stability, fast response;
Small size, easy to install and use.
Cable identification | Color | Function |
24V+ | Blue | DC12-24V power supply positive |
24V- | Black | DC12-24V power supply negative |
485A | Brown | RS485 Communication Terminal A |
485B | White | RS485 communication terminal B |
Technical Index
Sensor | 3D ion flow oxygen sensor | |
Measuring range | 0~40.00% O₂ | |
Linear error | ±2%FS | |
Repeatability | ±1%FS | |
Stability | ±1%FS/7d | |
Response time | T₉₀<30s | |
Power supply | DC 12~24V | |
Consumption | <5VA | |
Ambient TEMP. | 0~+45℃ Ambient humidity:<85%RH | |
Sensor life | More than 5 years (normal use) | |
Project | CI-PC888 | CI-PC888-1 |
Measuring range | 0-40.00% O₂ | 0-25.00% O₂ |
Output mode | RS485 | TTL/RS485 |
Dimensions of mounting holes | 30mm（2×Φ3.5） | 25mm（2×Φ3.5） |
Dimensions | ||
Sensor | 3DE01 | 3DE05 |
The product has stable performance, good usability, and reliable quality, which has been approved by the authoritative third party.
