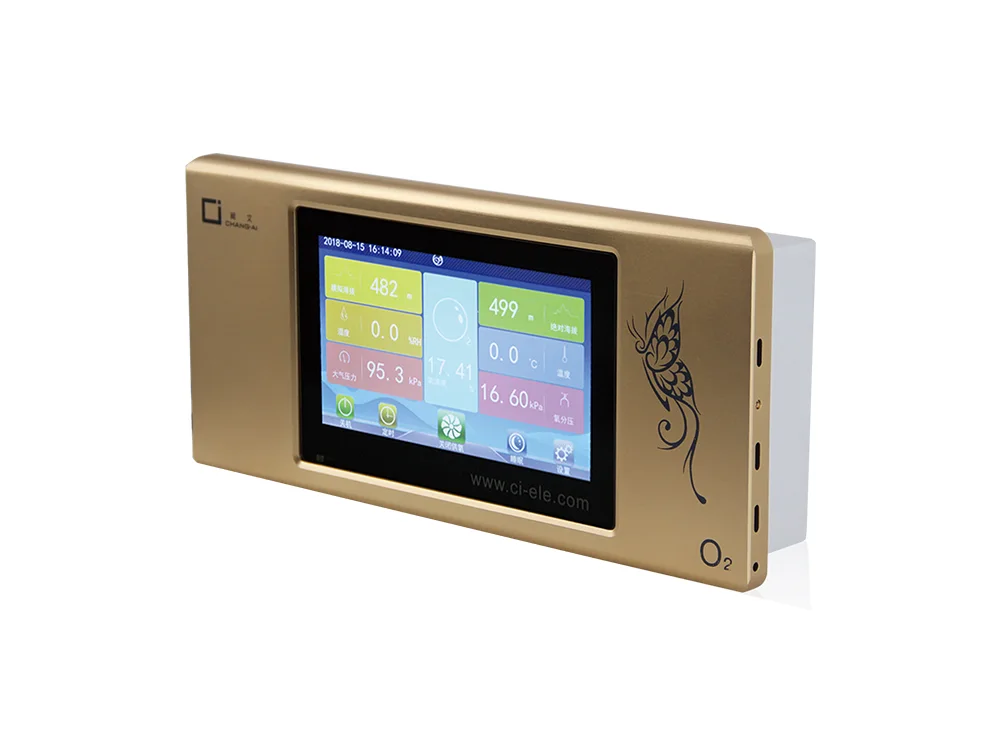

High quality CI-PC896 Plateau dispersion oxygen monitor
The design stage of CHANG AI during the production process also functions importantly.
CI-PC896 Plateau dispersion oxygen monitor Product Features
Oxygen flow range: 0.5~30L/min, adjustable;
Oxygen supply flow 20L/mint, noise J\F40dBA;
3DE ion flow sensor is used as the measuring unit, the design life of 3D ion flow sensor is 2 times that of ordinary ion flow sensor;
Real-time online monitoring indoor air oxygen concentration, to ensure the safety of use;
Set oxygen monitoring and control in one, in the measurement of environmental oxygen changes at thesame time, to achieve environmental oxygen concentr-ation regulation;
7 inch color touch screen, easy to operate.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 0~40.00% O₂ |
Linear error | ±1% FS |
Repeatability | ±0.5% FS |
Stability | ±0.5% FS/7d |
Response time | T₉₀<20s |
Power supply | AC 100~240V, 50/60Hz |
Input power | ≤20VA |
Control mode | Touch screen operation, infrared remote control, remote control (communication) |
Ambient TEMP | -10~+50℃ |
Ambient humidity | <80%RH, no condensate |
Measuring medium | Air or inert gas |
Storage | Temperature：-20~+60°C |
Humidity:<80%RH,no condensate When the TEMP is below 5°C, prior using the equipment, it should be placed in the normal operating temperature environment for 4 hours and above. |
CHANG AI is made under powerful productivity with excellent equipment and advanced technology.
