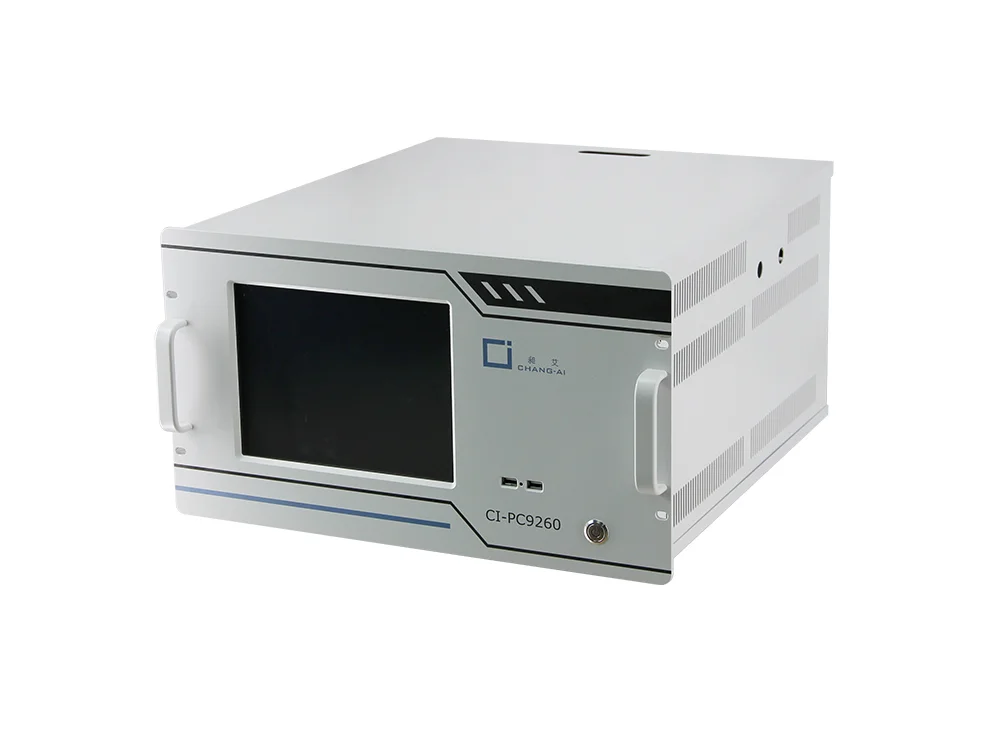

Reliable CI-PC9260 Online gas chromatograph
All the raw materials of CHANG AI are in line with international standards.
CI-PC9260 new networked online gas chromatograph is the latest online gas chromatograph with programmed heating and cooling functions launched by "ChangAi" company. Using the automatic sampling system, the instrument can optionally be equipped with PDHID/PED detector, which is suitable for the online analysis of ppb-level trace impurities in high-purity gases; Equipped with a high-sensitivity TCD detector, it can realize the detection of impurities with ppm-% content in gas; Equipped with a highly sensitive FID detector, it is possible to detect organic substances such as hydrocarbons in ppm-% content in samples.
CI-PC9260 Online gas chromatograph Product Features
It is specially designed for 19-inch standard cabinet installation applications, adopts a standard 6U structure, and has the characteristics of compact structure and small size;
Equipped with a built-in industrial-grade computer and a built-in touch LCD display, the display is intuitive and the operation is convenient;
The instrument adopts a modular structure design, which is clear in design, easy to replace and upgrade, and can be equipped with a variety of high-performance detectors, such as PDHID, PED, FPD, FID, TCD, ZrO₂, etc..
Technical Index
| Control mode: | Embedded industrial computer |
| Detector Type | |
| Pulse Discharge Ammonia Ionization Detector(PDHID) | |
| Detection object: | ppb level trace impurities in high purity gas |
| Detection limit: | 5ppb |
| Carrier gas type: | He |
| Carrier gas flow: | 150ml/min |
| Thermal Conductivity Detector (TCD) | |
| Detection object: | Impurities in ppm-% content in gas |
| Detection limit: | 10ppm |
| Carrier gas type: | N₂/Ar/He |
| Carrier gas flow: | 100ml/min |
| Hydrogen Flame Ionization Detector (FID) | |
| Detection object: | ppm-% content of hydrocarbons in gas |
| Detection limit: | 0.03ppm |
| Carrier gas type: | N₂/Ar |
| Carrier gas flow: | 100ml/min |
| Plasma Detector (PED) | |
| Detection object: | purity gas ppb level trace impurities in high |
| Detection limit: | 0.5ppb |
| Carrier gas type: | He/Ar/N₂/CO₂ |
| Carrier gas flow: | 150ml/min |
| Gas Path Control | |
| Sample gas flow: | Positive pressure:50ml/min or negative pressure sampling |
| Sample gas pressure: | -0.1Mpa 0.1MPa |
| Sample gas interface: | 1/4 |
| Carrier gas pressure: | 5 to 30 PSIG |
| Flow control: | Electronic monitoring |
| Electrical Appliance | |
| Power supply: | AC 220V,50/60Hz |
| Consumption: | 400W |
| Communication interface: | RS-232/485,TCP |
| Protocol: | Modbus-RTU,Modbus-TCP,4-20mA |
| Shape | |
| Dimension: | Standard 5U Rack-mount Chassis |
| Temperature Control Parameters | |
| Temperature control area: | 8 ways |
| Temperature control range: | Above room temperature 4℃~450℃, Increment:1℃ Accuracy:±0.01℃ |
| Program heating steps: | 20 steps |
