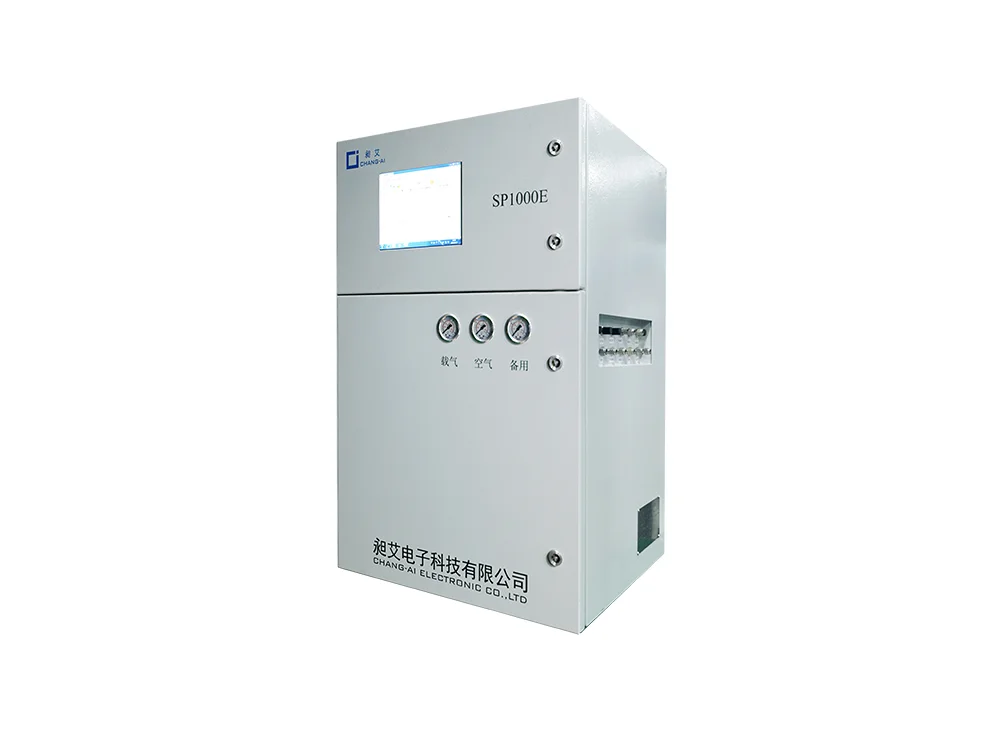

Certified CI-SP1000E Online explosion-proof gas chromatograph
It has passed comprehensive performance tests before leaving the factory to ensure product quality.
CI-SP1000E explosion-proof industrial gas chromatograph inherits the excellent design of ChangAi Instrument in industrial chromatographic analysis. It not only adopts a new industrial design, but also uses proven high-reliability components. In addition, the user's total cost of ownership is reduced through the unprecedented built-in automatic detection function, making it an industrial chromatograph that can meet the requirements for analytical reliability and accuracy.
CI-SP1000E Online explosion-proof gas chromatograph Product Features
Each chromatographic column is equipped with a programmable temperature-raising column oven, and each chromatographic column has an independent column oven temperature control system;
Built-in industrial computer with touch screen function, combined with powerful spectrogram software and Windows PC system, you can create methods, design custom reports, watch calibration curves, acquire and process data, create and run batch detection through the screen;
Automatic gas cut-off protection function: When the carrier gas pressure is lower than the safety threshold, the system will automatically cut off the detector voltage to protect the detector from damage and ensure the safe operation of the instrument;
Built-in aging program: In the daily use of the instrument, in order to ensure the good operation of the instrument, it is necessary to perform irregular aging on the instrument. The instrument will automatically run according to the required parameters, which is convenient for users to maintain the instrument daily.
Technical Index
| Control method: | Built-in 10.4-inch industrial computer with color touch screen display |
| Detection channel: | Single channel, dual channel |
| Detector: | PDHID、TCD、FID |
| Column box : | Room temperature 4 °C ~ 135 °C, increment: 1 °C, accuracy: ± 0.1 °C |
| Lower range limit: | nL/L、μL/L、% |
| Drift/Repeatability: | ±1%~±5% |
| Measuring range: | -110~+20℃ |
| Sample gas flow: | 30~100mL/min |
| Sample gas pressure: | 0.05~0.3MPa |
| Carrier gas type: | He（or N₂、Ar、H₂） |
| Carrier gas flow: | 30~150mL/min |
| Carrier gas pressure: | 0.4 MPa |
| Instrument air: | Pressure: 350~900kPa, Flow:150~210L/min |
| Power supply: | AC 220V，50~60Hz |
| Consumption: | 1.5kW~2kW |
| Weight: | 100kg |
| Dimensions: | Wall-mounted cabinet |
| 600mm (W) X950mm (H) X400mm (D) | |
| Flow control: | EPC, Flow Meter, Electronic Monitoring (optional) |
| Flow path control: | Up to 60 channels (including calibration channels) |
| Analysis cycle: | Up to 21600.0 seconds (6 hours) |
| Ex-mark: | Ex d e px IIC T4 Gb |
Installation Environment
The CI-SP1000E explosion-proof industrial gas chromatograph should be operated at a temperature and relative humidity of 5~35℃ and 0~85% respectively. But it is best to use it in an environment where people feel comfortable (proper constant temperature and humidity conditions). In this way, the instrument can play the best performance and the service life of the instrument is the longest.
With so many advantages, the product is widely praised among customers and widely applied in the global market now.
