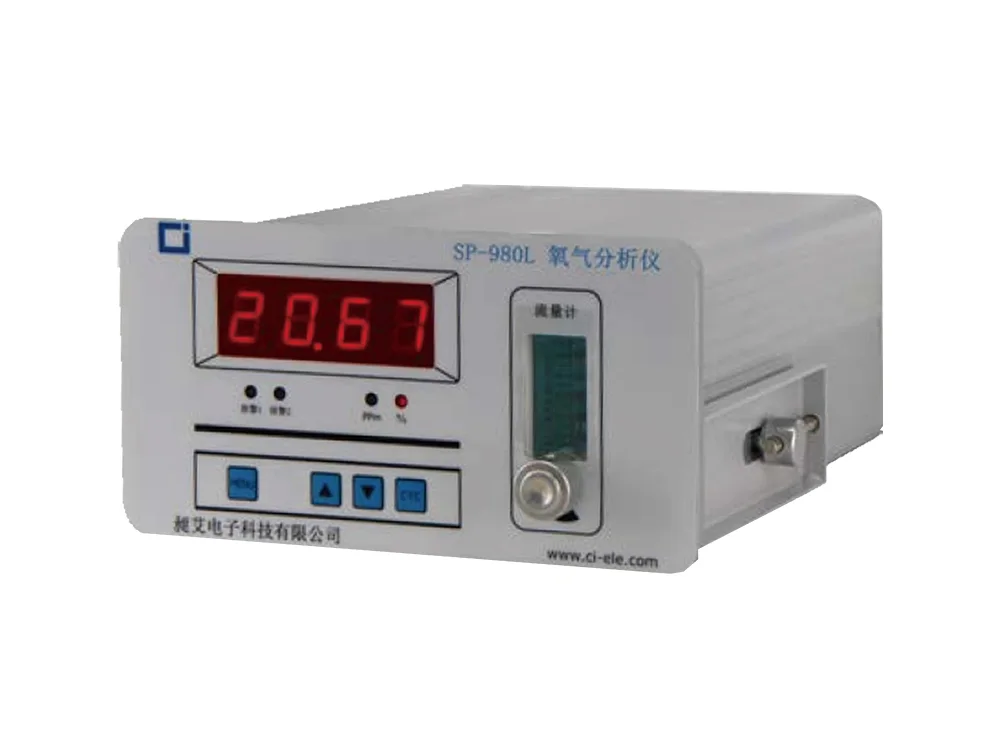

Top SP-980L High content oxygen analyzer
The materials CHANG AI uses are strictly tested before production.
SP-980L High content Oxygen Analyzer Product Features
The 3D ion flow sensor has the characteristics of high test accuracy, long service life, no reference gas, small size, low power consumption;
Alarm function: when the oxygen concentration deviat-
es from the alarm value, alarm value can be set in the full range of arbitrary;
It has the characteristics of small volume, good stability, and is very simple to us.
Technical Index
Sensor | 3D ion flow sensor |
Measuring range | 10~97.00%/ 99.99%, 97%~99.99% O₂ |
Linear error | ±2%FS |
Repeatability | ±1%FS |
Stability | ±1%FS/7d |
Response time | T₉₀<60s(after full preheating) |
Pipe connection D | ¼"NPTﾠinternalﾠthread,standard¼-Φ6 quick twist connector |
Connection method | Terminal |
Mounting method | Dial mounting |
Power supply | AC 100~240V, 50/60Hz |
Consumption | <10VA |
Ambient TEMP. | Operating temperature: -10~+50℃ |
Storageﾠandﾠtransportationﾠtemperature: -20~+60℃ | |
Ambient humidity | <90%RH |
Sample gas pressure | Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
Sample gas flow | 400~600ml/min |
Analog singal | 4~20mA |
CHANG AI is made of well-selected materials and manufactured by experienced staff using the advanced equipment as per set industry principles and guidelines, representing the finest workmanship in the industry.
