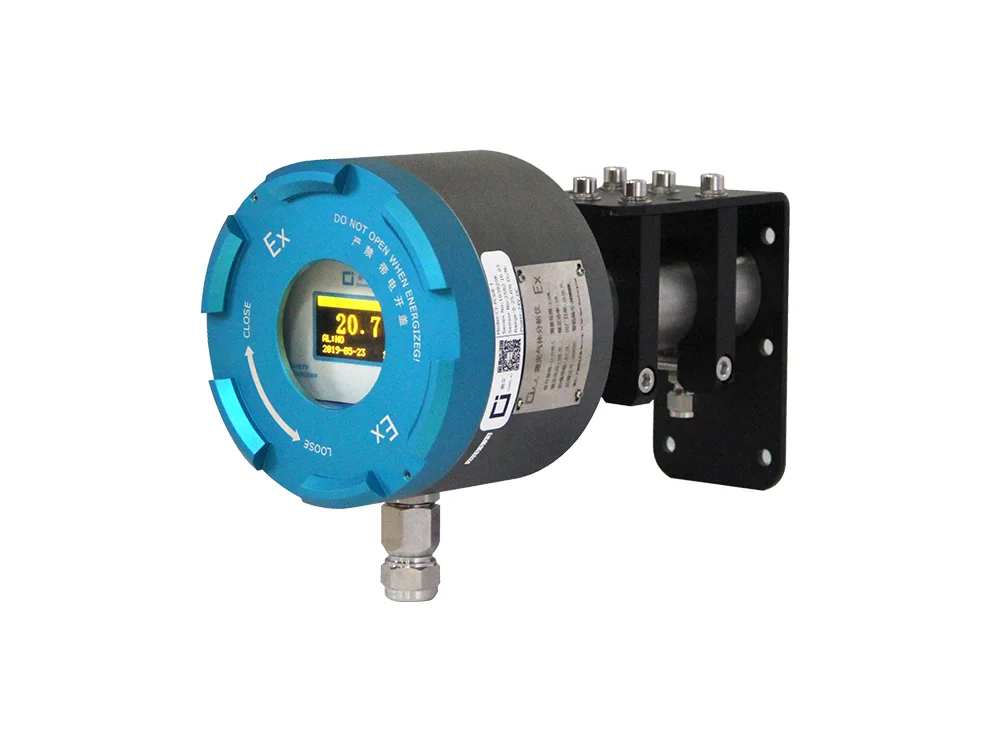

Reliable CI-PC68/-1 Explosion-proof laser gas analyzer
The material for CHANG AI is of high quality.
CI-PC68/-1 Explosion-proof Laser Gas Analyzer Product Features
Optional sampling chamber for high temperature processing, pressure rise, and extremely harsh mechanical environments direct contact probe or sampling chamber options;
Resistant to corrosive chemical gases;
Resistant to extreme humidity and even liquid water;
Low maintenance;
Preventive maintenance diagnostics;
Heated optical surfaces prevent condensation;
A stainless steel mesh filter unit and an optional porous PTFE filter keep the optical probe dust and dust-proof.
Technical Index
| Accuracy: | ±1 FS% | |
| TEMP drift: | ±1% reading | |
| Stability: | ±1％ reading/year | |
| Zero drift: | ±0.1% /year | |
| Measuring components | ||
| Componen | Range | Selection code |
| O₂ | 0~99.9%Vol | A |
| CO₂ | 0~99.9%Vol | B |
| CO | 0~99.9%Vol | C |
| CH₄ | 0~90.0%Vol | E |
| HF | 0~1.000%Vol | J |
| HCL | 0~1.00%Vol | M |
| NH₃ | 0~1.00%Vol 0~10.00%Vol | N |
Note:
1. The above are part of the measured gas indicators, and other gases can be customized according to user needs;
2. The specific range can be set according to the needs of users.
