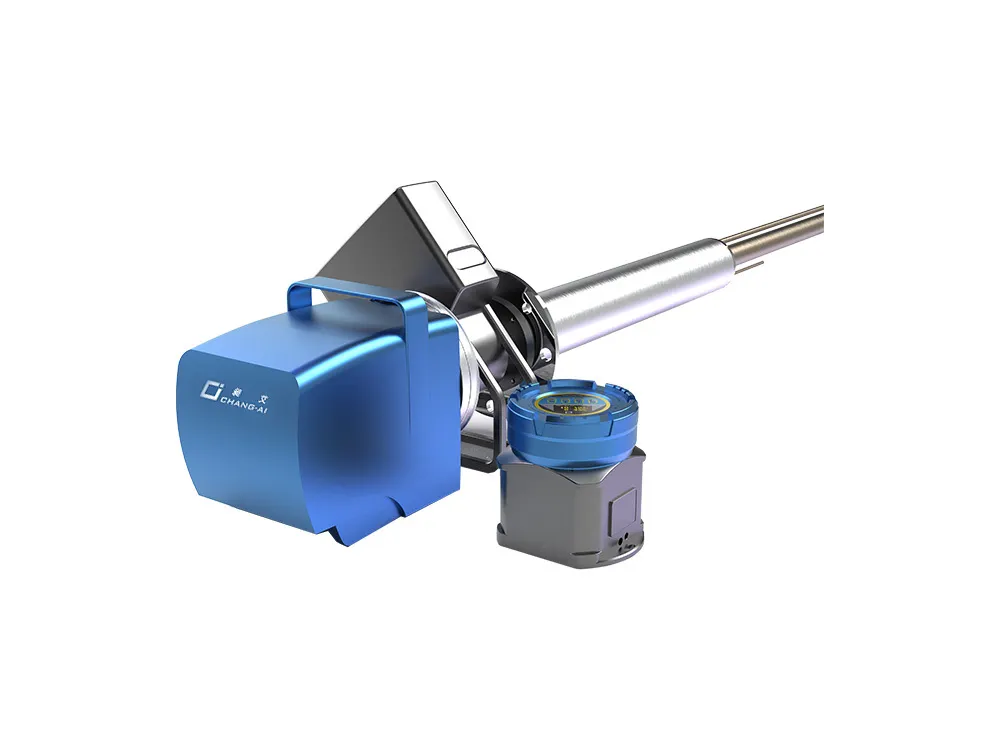

Reliable CI-PC66 Laser gas analyzer
has reached its peak in CHANG AI industry for its good quality service and quality assurance.
CI-PC66 Laser Gas Analyzer Product Features
CI-PC66 is a high-end, professional and highly reliable gas analyzer designed to provide fast response speed for various gases in industrial processes. Tunable Diode Laser Laser (TDLAS) principle, the instrument measurement probe is inserted directly into the measurement environment, and the analyzer requires no sampling or pre-processing, helping to reduce downtime and increase process safety at a lower cost of ownership. Provides a range of uses.The analyzer has the advantages of accurate measurement, high real-time performance and stability.
Using the TDLAS principle, it has the advantages of accurate measurement, fast response, high sensitivity, stability and reliability;
Silicon carbide filter: suitable for high temperature and high dust environment, to ensure optical signal transmittance;
High-temperature heating of the mirror surface: prevent the adhesion of viscous substances and keep the mirror surface clean;
Single-ended installation: reduce installation openings, facilitate installation and optical path adjustment;
In-situ measurement: real-time rapid measurement without sampling and pre-processing devices;
Integrated design of transmitter and receiver: reduce the difficulty of debugging and maintenance, increase the anti-vibration ability, and improve optical stability.
Technical Index
| Linearity error | ±2% FS (only applicable to communication output, analog signal) |
| Repeatability | ±1% FS |
| Stability | ±0.1% FS /7d |
| Response time | T₉₀<120s |
| Analog signal | 2 groups (respectively corresponding to gas concentration and measured light transmittance) |
| Analog output mode | 4-20mA/0-20mA, support software switching |
| Load | <500Ω |
| Alarm point | 2 groups (one of concentration alarm, one of status alarm) |
| Relay contact capacity | DC 24V, 0.2A |
| Communications | RS485 (standard)/RS232 (optional)） |
| Temperature | Meter: -30~+55℃ |
| Probe: -20~+400℃ | |
| (Storage: -20~+60℃) | |
| Humidity | <80%RH |
| Working pressure | 0.8~1.4bar |
| Dust concentration | ≤30g/m³ |
| Display | 128X64 OLED screen |
| Button | Four touch buttons |
| Power supply | AC 100~240V, 50/60Hz |
| Consumption | Transceiver unit + measuring probe: ≤100VA |
| Control unit:≤80VA |
Measurements
| Component | Range | Lower limit | Selection code | |
| O₂ | 0-3% | 0.10% | Vol% | A |
| 0-25%Vol% | ||||
| CO | 0-5000ppm | 1ppm | C | |
| HF | 0-2ppm | 0.1ppm | J | |
| 0-2000ppm | 1ppm | |||
| H₂O | 0...5Vol%/ 0-40Vol% | 0.01% | Vol% | K |
| HCL | 0-10ppm | 0.3ppm | M | |
| 0-3000ppm | 1ppm | |||
| NH₃ | 0-10ppm | 0.3ppm | N | |
| 0-5000ppm | 1ppm | |||
NH₃/ H₂O | 0-10ppm / 0-5000ppm | 0.3ppm | ppm,mg/ m³,Vol% | NK |
| 0...5Vol%/ 0-40Vol% | 0.01% |
It has a large assortment of applications in its field.
