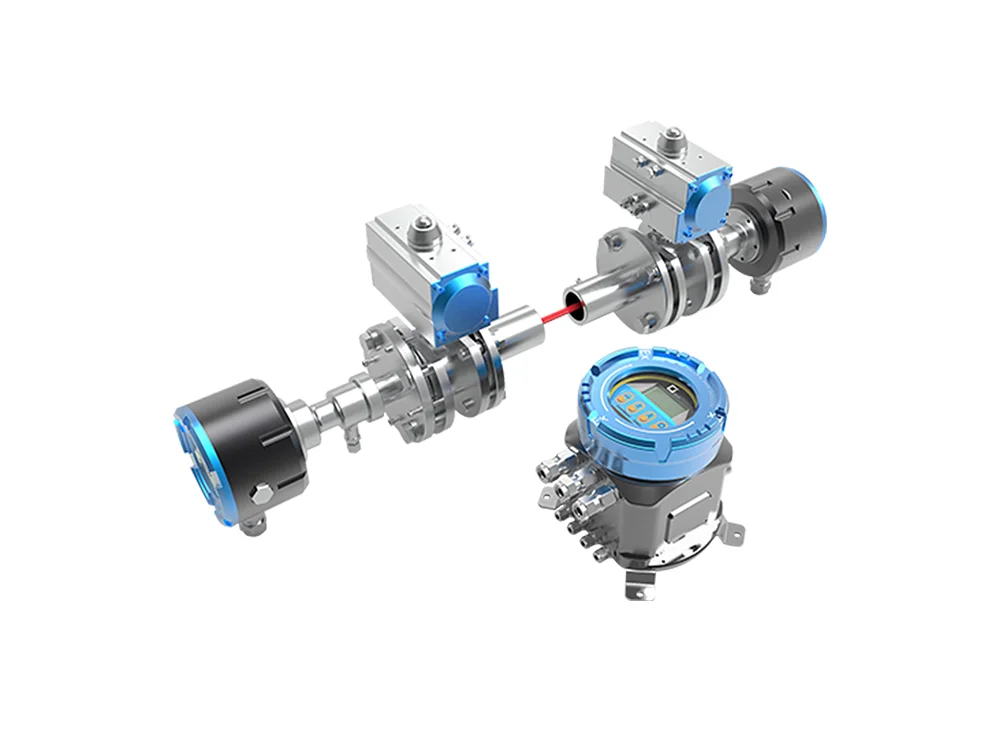

Top CI-PC6500 Laser gas analyzer
Product Features
Strengthens the research and development of cost-effective products.
CI-PC6500 Laser Gas Analyzer Product Features
Technical Index
| Optical channel length | 0.5~4m |
| Measuring components and volumes | Please refer to CI-PC68/-1 on page 64 |
| Response time | T₉₀<10s |
| Linear error | ≤1%FS |
| Repeatability | ≤1% |
| Range drift | ≤1% FS/half a year |
| Maintenance cycle | ≤2 times/year, optical windows to be cleaned |
| Ex-mark | Ex d llC T6 Gb |
| Calibration cycle | ≤2 times/year |
| Analog signal | 2-way 4-20mA input (temperature, pressure compensation) |
| Digital output | RS485/ RS232/ GPRS |
| Relay output | 2 outputs (DC 24V, 0.2A) |
| Power supply | DC 24V, <20VA |
| Purge gas | 0.3MPa~0.8MPa industrial nitrogen, instrument purifying gas etc. |
| Ambient TEMP. | -20℃~+60℃ |
PC65xMeasured Components
| Gases | Minimum Range | Maximum Range | Model code |
| O2 | 0～1.00%Vol. | 0～99.99%Vol. | A |
| CO2 | 0～1.00%Vol. | 0～99.99%Vol. | B |
| CO | 0～8000ppm | 0～2.00%Vol. | C |
| CO/CO2 | 0～10.00%Vol. | 0～99.99%Vol. | D |
| CH4 | 0～100ppm | 0～99.99%Vol. | E |
| C2H2 | 0～1000ppm | 0～50.00%Vol. | F |
| C2H4 | 0～1000ppm | 0～50.00%Vol. | G |
| C2H6 | 0～1000ppm | 0～50.00%Vol. | H |
| H2 | 0～5.00%Vol. | 0～99.99%Vol. | I |
| HF | 0～10ppm | 0～1000ppm | J |
| H2O | 0～100ppm | 0～40.00%Vol. | K |
| H2S | 0～500ppm | 0～10000ppm | L |
| HCL | 0～100ppm | 0～1000ppmVol. | M |
| NH3 | 0～100ppm | 0～10.00%Vol. | N |
| HCN | 0～10ppm | 0～1.00%Vol. | O |
| C2H4O | 0～500ppm | 0～10.00%Vol. | P |
| SO2 | 0～300ppm | 0～2000ppm | Q |
| NO | 0～50ppm | 0～2000ppm | R |
Note:
1. The above are specifications for partial measured gases; other gases can be customized according to user requirements.
2. Specific measurement ranges can be configured as required.
3. The temperature of measured gas is optional from 0～120℃; the range of the standard model is 0～40℃.
4. The minimum and maximum ranges of concentration in the table are based on a measuring optical path length of 1 m (flue / process pipeline).
