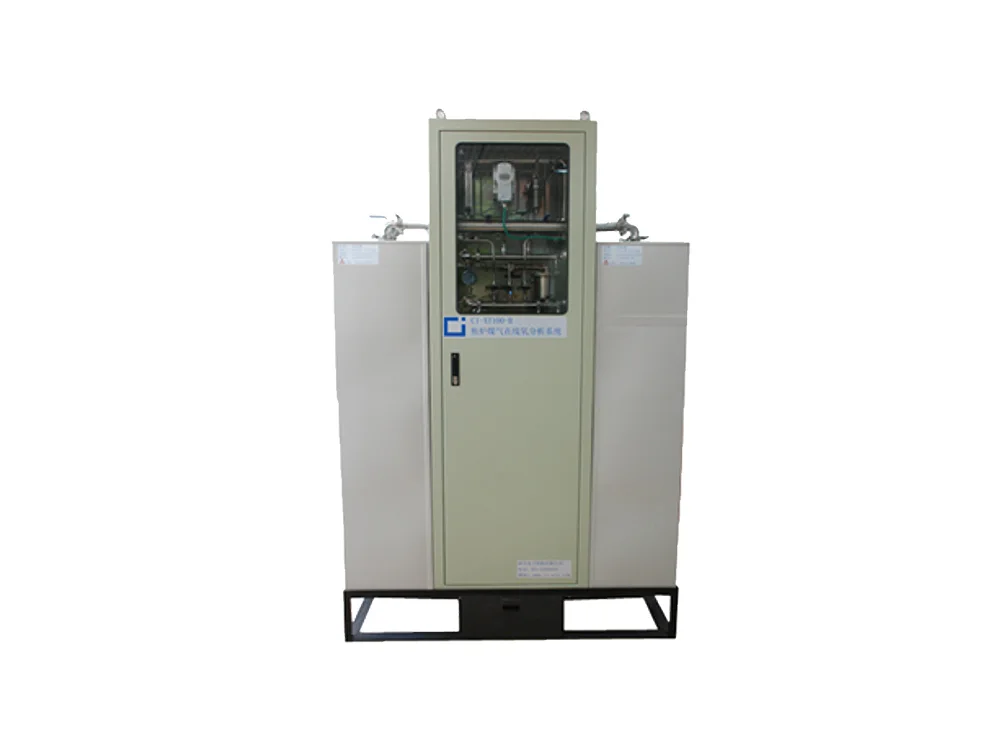

Industrial Integrated CI-XT100-B Coke oven gas analysis system
The product has good stability and reliability and long service life.
CI-XT100-B integrates machine, electricity and instrumentation, combines advanced laser oxygen measurement technology with sampling pretreatment, and adopts international advanced technologies and The equipment fully purifies and treats tar, coal dust, water vapor, gas, hydrogen sulfide and other substances in the coke oven gas to ensure the long-term stable operation of the entire system; and then uses the laser Oxygen Analyzer CI-385 to test the oxygen content.
CI-XT100-B Coke oven Gas Analysis System Product Features
The measurement principle of the system analysis instrument is Tunable Semiconductor Laser Diode Absorption Spectroscopy (TDLAS), and a polymer filter is used outside the instrument analysis room, which can completely filter water and corrosive impurities, effectively improving the test performance of the analysis instrument. Accuracy and service life;
The system sampling probe has a built-in high-precision filter, which has the characteristics of strong corrosion resistance, high filtration accuracy, long maintenance cycle and convenient maintenance;
The dual-loop sampling tube is easy to install, has strong corrosion resistance, and has the effect of self-heating while sampling;
The system pretreatment includes multiple water removal processes of water washing-water cooling-separation, water cooling-re-separation, and then the sample gas is provided to the analytical instrument for analysis, ensuring the use of the analytical instrument and prolonging the service life of the instrument;
The internal components of the system are all explosion-proof and anti-corrosion designed, which can fully meet the user's requirements.
Technical Index
| Measuring range | 0-25.0% O₂ |
| Detection principle | Tunable Semiconductor Laser Diode Absorption Spectroscopy (TDLAS) |
| System power | DC 24V 10W |
| Alarm output | 1 channel alarm output (analyzer failure alarm) |
| Relay contact capacity | DC 24V,0.2A |
| Analog signal | 1 group of 4-20mA outputs corresponds to O₂ |
| Ambient TEMP. | 0~+45℃ |
| Ambient humidity | <80%RH |
| Intake pressure | Ejector sampling with steam at negative and slight positive pressures |
| Sample gas flow | 4-6L/min |
| Air inlet and outlet interface | Φ25 clamp locking method |
| System life | More than 5 years (normal use) |
| Installationmethod | The base is fixed with expansion screws |
| Circuit configuration | Applied to low explosion-proof requirements or non-explosion-proof occasions |
| Analyzer calibration | Once a year, zero and span to be calibrated using standard gas and high-purity nitrogen |
| System dimensions | D×W×H=1530mm×420mm×2280mm |
| House dimensions | D×W×H=3000mm×3000mm×3000mm |
| Installation dimensions | D×W=1466mm×366mm(with expansion screws) |
| System weight | About 300kg |
Application Field
Coking plant - either the inlet or the outlet of the electric tar collector can be used.
Together with perfect after-sales service, and comprehensive technical support, the product has won the long-term trust of customers.
