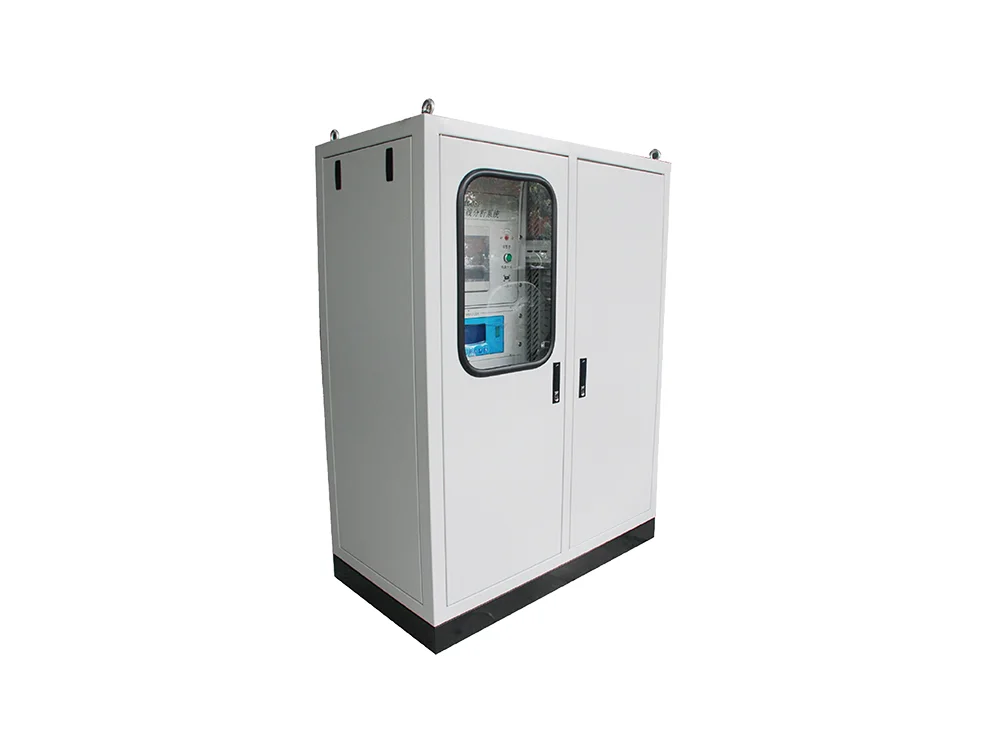

High quality CI-XT6003C Brazing furnace online oxygen analysis system
In the production process, advanced testing equipment is used to inspect the products to ensure high performance and consistent quality.
The system adopts anti-corrosion and protective treatment methods, which meet the requirements of the brazing furnace production line. The system uses an air pump to sample the sample gas, and then removes the dust in the sample gas by filtration and then sends it to the instrument for analysis. The system can expand the sampling port according to the needs of the site.
CI-XT6003C Brazing furnace online oxygen analysis system Product Features
The system sampling probe has a built-in high-precision filter, which has the characteristics of strong corrosion resistance, high filtration accuracy, long maintenance cycle and convenient maintenance;
The PLC automatic control unit of the system enables the system to complete the functions of automatic pre-pumping, automatic switching of sampling ports, automatic testing, automatic backflushing, automatic sewage discharge, and fault alarm, effectively reducing labor costs for users.
Technical Index
| Measuring range | 0-1000ppm O₂ |
| Can be expanded or configured at will | |
| Sensor | Electrochemical gas sensor |
| Power supply | AC 220V±10% 50/60Hz |
| Consumption | <50VA |
| Alarm output | 1 channel |
| Relay contact capacity | DC 24V,0.2A |
| Analog signal | 1 group of 4-20mA outputs corresponding to O₂ |
| Ambient TEMP. | 0~+45℃ |
| Ambient humidity | <80%RH |
| Intake pressure | Use an air pump for negative pressure and slight positive pressure |
| Sample gas flow | 4-6L/min |
| Inlet and outlet air interface | G1/4 internal thread connection |
| System life | More than 5 years (normal use) |
| Installation method | The base is fixed with expansion screws |
| Circuit structure | Used in non-explosion-proof occasions |
| Calibration interval | Once a year, zero and span to be calibrated using standard gas and high-purity nitrogen. |
| System dimensions | D×W×H=1200mm×650mm×1600mm |
| House dimensions | D×W×H=2000mm×2000mm×2500mm |
| Packing box | Wooden box packing |
| System weight | About 120kg |
Application Field
Automobile manufacturing - brazing furnace;
Can be widely used in brazing furnaces, air separation and liquefaction, such as the measurement and control of oxygen concentration in pressure swing adsorption (PSA) nitrogen production equipment;
Chemical process;
Protective gas for high temperature sintering furnaces such as magnetic materials;
Protective gas in the electronics industry;
Glass, building materials industry, etc..
