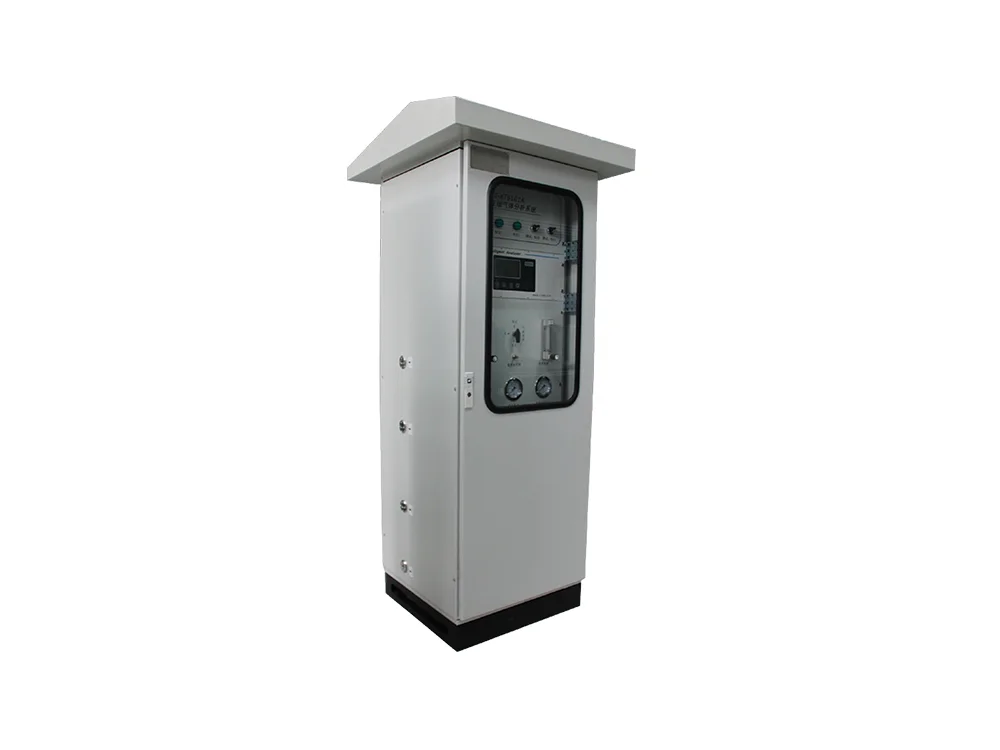

Wholesale CI-XT6400 Process analysis system for gas generator
The product has got a high level of customer satisfaction, showing great potential for wider market application.
CI-XT6400 system adopts anti-corrosion and explosion-proof treatment methods, which meet the requirements of chemical explosion-proof production lines. The air extraction sampling method is adopted, and the sample gas is sampled, filtered, dewatered and dedusted, and then sent to the instrument for analysis, which ensures the service life of the instrument and greatly reduces the maintenance workload of the instrument.
CI-XT6400 Process analysis system for gas generator Product Features
The system sampling probe has a built-in high-precision filter, which has the characteristics of strong corrosion resistance, high filtration accuracy, long maintenance cycle, and convenient maintenance, and the use of the probe with a delay relay can automatically switch between sampling and testing;
Self-constant temperature sampling tube has the characteristics of convenient installation, strong corrosion resistance and constant temperature;
The devices inside the system are all explosion-proof and anti-corrosion designed, which can meet the requirements of users.
| System power | AC 220V±10% 50/60Hz |
| Consumption | <50VA |
| Alarm output | 1 channel alarm output |
| Relay contact capacity | DC 24V,0.2A |
| Analog signal | 1 group of 4-20mA outputs corresponding to O₂ |
| Ambient TEMP. | 0~+45℃ |
| Ambient humidity | <80%RH |
| Intake pressure | Use an air pump for negative pressure and slight positive pressure |
| Sample gas flow | 4-6L/min |
| Tracheal interface | G1/4 internal thread connection |
| Instrument life | More than 5 years (normal use) |
| Installation method | The base is fixed with expansion screws |
| Circuit structure | Used in low-explosion-proof or non-explosion-proof occasions |
| Calibration period | Once a year, zero and span to be calibrated using standard gas and high-purity nitrogen |
| System dimensions | D×W×H=600mm×600mm×1750mm |
| House dimensions | D×W×H=2000mm×2000mm×2500mm |
| Packing box | wooden box packing |
| System weight | Approx. 100kg |
Application Field
Coking plant - oxygen measurement in coal gas branch;
Can be widely used in air separation and liquefaction, chemical process;
Protective gas for high temperature sintering furnaces such as magnetic materials;
Protective gas in the electronics industry;
Glass, building materials industry, etc..
