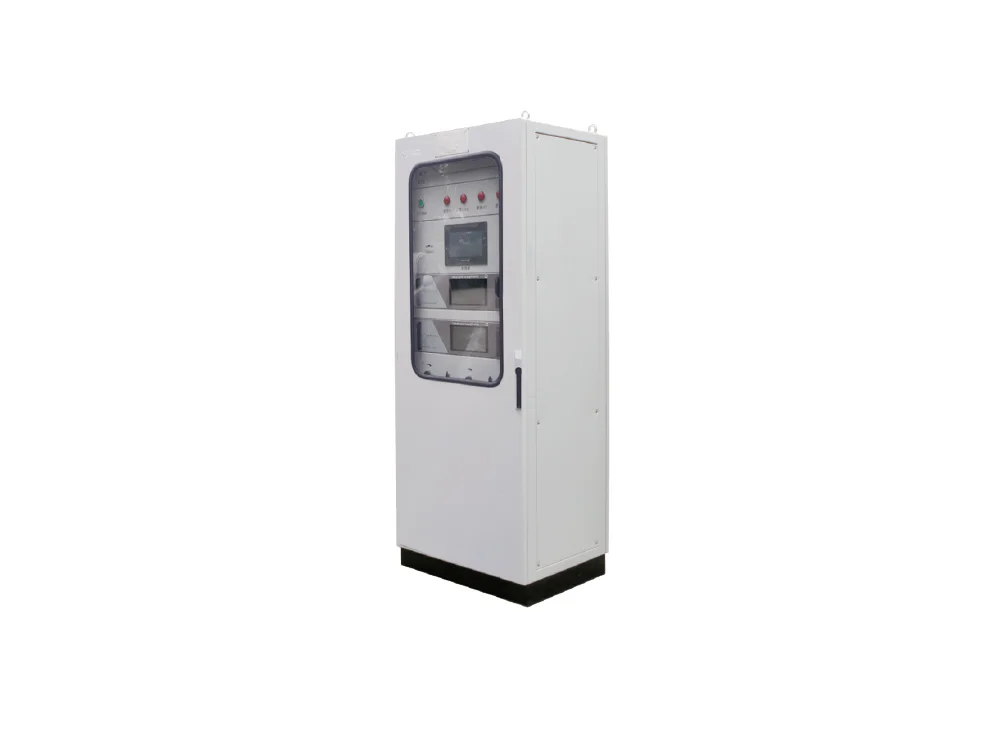

Top CI-XT20-2-Q Online medical oxygen quality detection system
CHANG AI is pretty and colorful.
The CI-XT20-2 online medical oxygen quality detection system is Shanghai ChangAi Electronic Technology Co., Ltd., according to the "Chinese Pharmacopoeia" 2020 Edition II XGB2021-061 standard stipulates that a targeted design can meet the GMP certification of medical oxygen testing standards, and is suitable for online quality monitoring of medical oxygen filling manufacturers.
CI-XT20-2-Q Online medical oxygen quality detection system Product Features
The high-performance infrared sensor is the measurement unit, which has the advantages of intelligence, high precision, good stability, and small zero drift;
Preventive maintenance diagnosis, low maintenance;
Using a 5-inch color touch screen as the human-computer interaction window, the display is beautiful, the content is rich, and the operation is simple;
The surface of the window is covered with a piece of toughened glass to enhance the impact protection of the window;
Communication function: RS485(standard configuration)/RS232(optional) two-way communication is adopted, which can directly communicate with computers or other digital communication equipment.
Technical Index
Reaction Speed | ||
System latency | T₁₀≤10s | |
System rise time | T₁₀~T₉₀≤15s | |
System Detection Parameters And Range | ||
Carbon dioxide | 0~500PPm | CO₂ |
Carbon monoxide | 0~5/10ppm | CO (range optional) |
Dew point | 0~500ppm | H₂O |
Oxygen | 80~100% | O₂ |
Repeatability | ≤0.5% | |
Load | ≤750Ω | |
Analog signal | DC 4~20 mA | |
Dimensions | 600mm×600mm×1700mm | |
Operating Conditions | ||
Applicable medium | Medical oxygen | |
Sample gas TEMP. | Room temperature | |
Sample gas | ||
pressure range | 0.05~0.15MPa | |
Sample gas flow | ≤3L/min | |
Sample gas dust | ||
concentration | ≤ 0.2mg/m³ | |
Working Conditions | ||
Ambient temperature | +15~+45℃ | |
Relative humidity | ≤85% | |
Power supply | AC 220V | |
Consumption | ≤60VA | |
Ambient air pressure | Altitude below 2500m | |
Air velocity | ≤0.5m/s | |
Work location | Horizontal | |
Special System Requirements
System cabinet:width*depth*height=600*800*2100mm;
Pipeline interface: upper part of the cabinet/lower part of the cabinet;
System external interface: 1/4 in ferrule connector (Swagelok).
Thanks to the design of our professional team, the CHANG AI has been widely popular in this industry.
