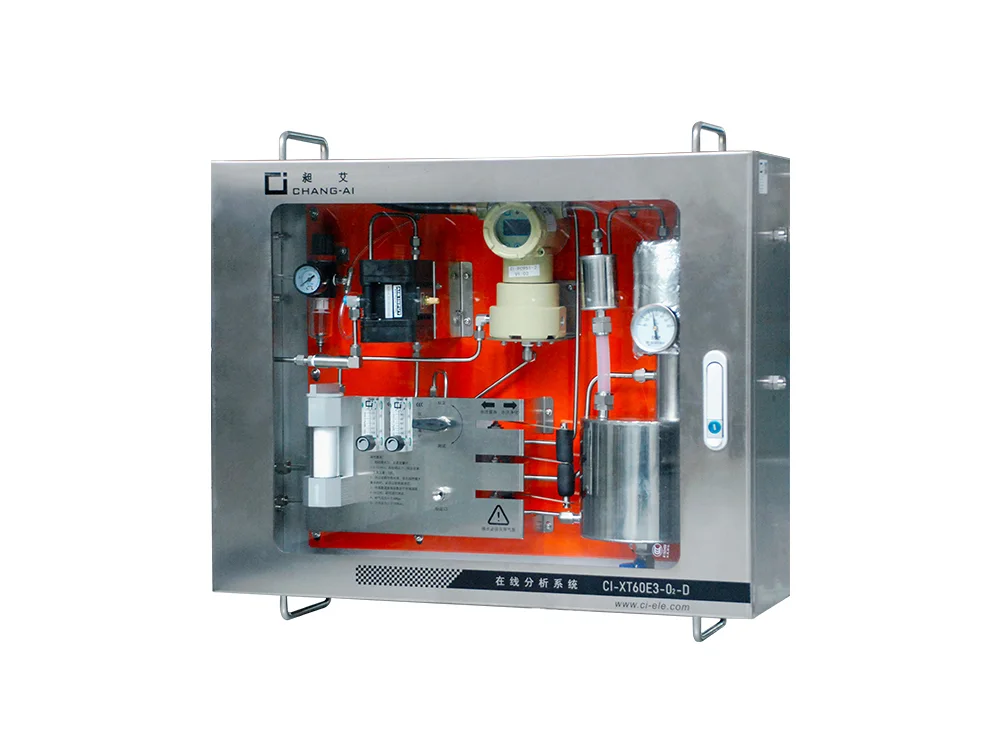

Modern CI-XT60E3-O₂D Centrifuge oxygen analysis system
After years of hard work, has now become a powerful company integrating CHANG AI design and development.
CI-XT60E3-O₂D is an oxygen analysis system developed for centrifuges. After the sample gas is sucked into the system by a pneumatic diaphragm pump, it is pretreated by water washing, condensation to remove water, gas-liquid separation, and filtration, which can effectively remove impurities and organic substances in the sample gas. Residues ensure that the sensor works in a good environment, which can effectively prolong the service life of the sensor.
CI-XT60E3-O₂D Centrifuge oxygen analysis system Product Features
Combining microcontroller with digital processing technology, anti-cross interference, stable and reliable;
Perfect pretreatment system, small maintenance;
With automatic blowback function, keep the sampling gas path clean and reduce the user's maintenance workload;
It has the function of automatic backflushing to keep the sampling gas path clean and reduce the user's maintenance workload;
Air supply valve can be selected, with automatic air supply function;
Optional alarm light.
Technical Index
Performance | |
Sensor | Electrochemical sensor |
Measuring range | 0~25.00% O₂ |
Linear error | ±2%FS |
Repeatability | ±1%FS |
Stability | ±1%FS/7d |
Response time | T₉₀<20s |
Configuration | |
Display | 7 inch color touch screen |
Installation method | Wall-mounted or using a chassis mount |
Sensor life | More than 2 years |
System life | More than 5 years |
Sampling method | Ventilation or suction pump |
Weight | The net weight is about 52.1kg |
Tracheal interface | PT1/4 internal thread, standard PT 1/4 quick connector |
Explosion-proof pipe interface | G1/2 thread (inner) |
Working Conditions | |
Working TEMP. | 0~+45℃ |
Working humidity | <90%RH |
Storage | Temperature: -20~+60℃ |
Humidity:<95%RH | |
Less dust, no smoke, no moisture and no corrosive gas | |
300~400mL/min (required) | |
Flow | Pressure:0.5~1Mpa |
Compressed air | Flow: 10~20L/min |
Output | |
Communication | RS485 (standard) or RS232 (optional) |
Modbus RTU Protocol | |
Analog signal | 1 group(corresponding to O2) |
4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V, | |
support software switching | |
load<500Ω | |
Switch signal | 1 group |
Relay contact capacity: DC 24V, 0.2A | |
Application Field
Applications in centrifuges and chemical explosion-proof environments.
