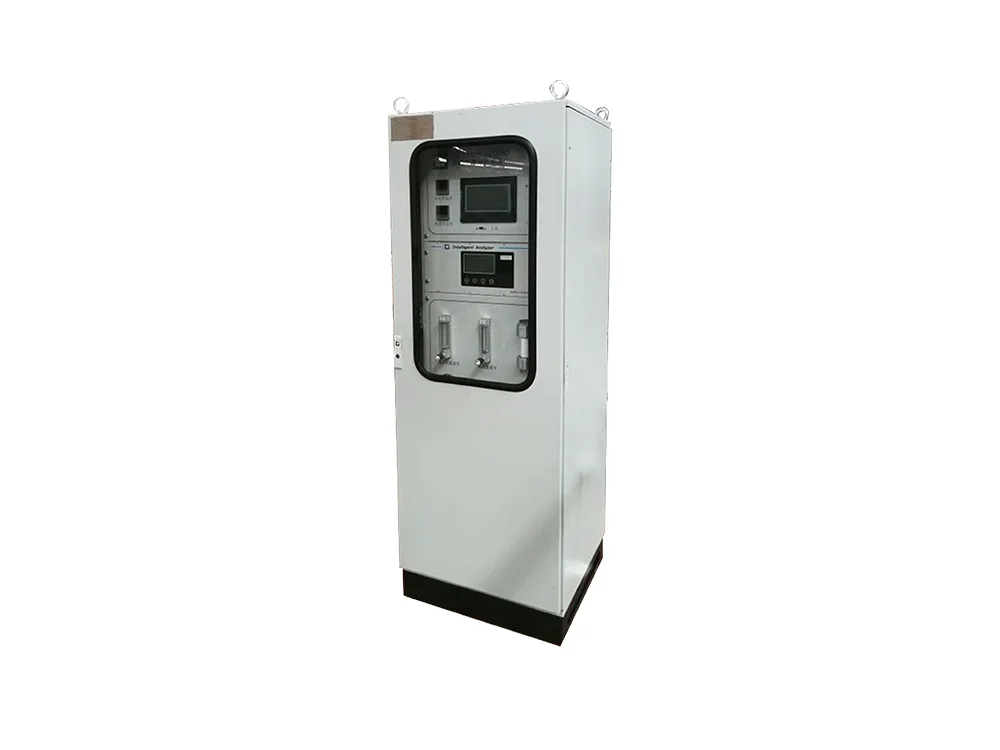

Reliable CI-XT62B Heat treatment furnace-controllable atmosphere analysis system
CHANG AI has better performance than any other similar products and is well accepted by customers.
The CI-XT62B series Gas Analysis System is aimed at the characteristics of the process gas sample conditions (high temperature and high water content) of silicon steel sheet heat treatment furnace, and the analysis principle of its components is to use the measured water content data and the dry sample composition data of indirect measurement (after water removal), and convert the corresponding real-time measurement parameters through PLC real-time collection.
CI-XT62B Heat treatment furnace-controllable atmosphere analysis system Product Features
Sampling adopts high-temperature, high-humidity high-temperature sampling probe, and the filter device adopts high-precision alloy filter, which is resistant to high temperature and corrosion, and the filtration accuracy is as high as 0.3u;
The sampling tube adopts an integrated anti-corrosion electric heating closed-loop temperature control pipeline, which has a good heating effect and prevents the loss of sample gas moisture;
The water detector adopts polymer water permeable film type high temperature and high humidity sensor;
Compressor refrigeration technology quickly removes moisture in the sample gas and prevents the loss of other components in the sample gas components;
All main components are imported, and the hardware configuration is high-end;
Distributed design technology is adopted, which is convenient for installation, maintenance and overhaul.
Technical Index
Power supply | AC 220V 50HZ |
Analog signal | 4~20mA (RS485 communication optional) |
Ambient TEMP. | 0~+45℃ |
Sample gas pressure | Slight-negative pressure or positive pressure (valve or suction pump to be utilized for different configurations) |
Dimensions | D X W X H=600 X 600 X 1700 (including base) |
Analyzer (can be selected according to working conditions) | |
Measuring range | -80~+60℃ (optional) |
Sensor manufacturer | ChangAi |
Detector original volume | Polymer film capacitive |
Trace Oxygen Analyzer | |
Measuring range | 0-10/100/1000PPm%O₂ |
Origin of sensor | USA |
Detector source | Electrochemical |
Measuring range | 0-60% H₂ |
Origin of sensor | USA |
Detector source | Thermal conductivity |
Application Field
High-quality silicon steel heat treatment furnace;
Protective gas testing for the electronics industry.
Ordering Instructions To Be Specified During Order
This product is non-explosion-proof design, an explosion-proof variant can be customized;
Please communicate with our technical personnel in detail regarding the working conditions before placing an order to achieve the best use effect of the product.
