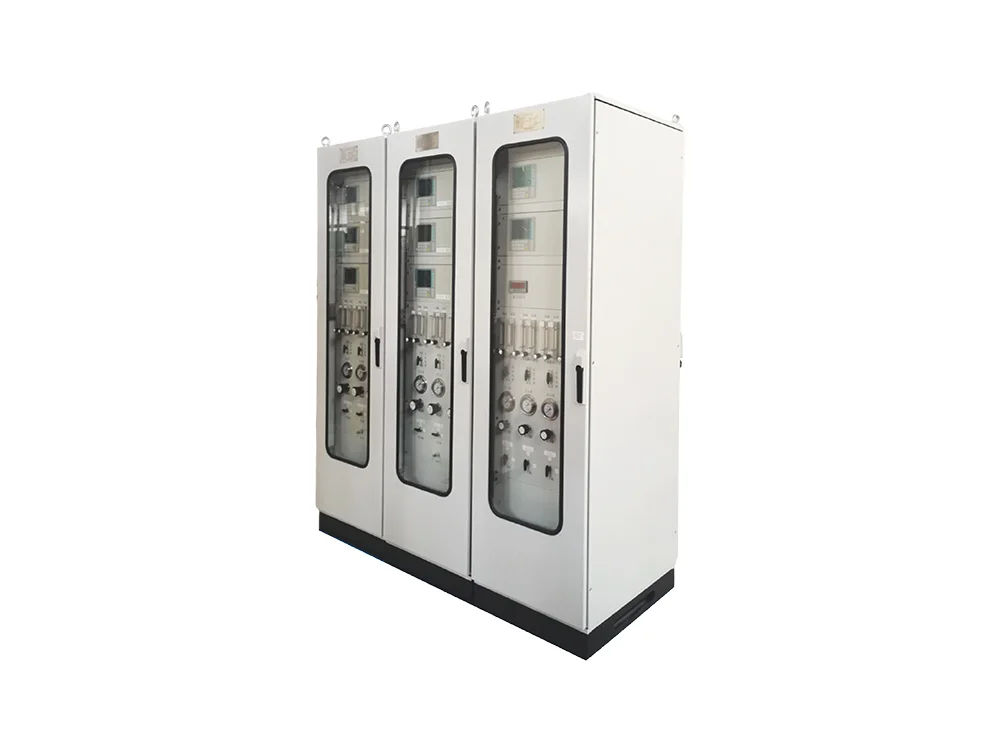

Wholesale CI-XT64B Series air separation process online analysis system
The production equipment of CHANG AI is advanced and meets the requirements of international standards.
CI-XT64B Gas Analysis System is for the deep cold air separation process gas sample conditions, the correct matching and reasonable combination, so that the analytical instruments and pretreatment devices can be well adapted to the process conditions. Sampling pretreatment plays a very important role in the whole system, and the sample gas should be dusted, oiled, watered, etc. before entering the analyzer sensor, and the composition of the gas to be measured must not be changed.
CI-XT64B Series air separation process online analysis system Product Features
The core components of the high-pressure pressure reducing box (stainless steel pressure reducing valve, stainless steel switch valve) are all made of Swaelok international famous brand;
The sample gas filtration device adopts high-precision, visual, composite filter, which has the characteristics of convenient maintenance and intuitiveness, and the filtration accuracy is high to 0.3u;
High purity oxygen detector, using the world's most advanced 3D ion flow detector, with high precision, long life characteristics;
Pretreatment pipelines, joints and valves are all domestic or international first-line brands;
The main components are all imported, and the hardware configuration is high-end.
Technical Index
Reaction Speed | |
Analyzer latency | T₁₀≤5s |
Analyzer rise time | T₁₀~T₉₀≤20s |
System latency | T₁₀≤5s |
System rise time | T₁₀~T₉₀≤20s |
Technical Indicators | |
Zero drift | ≤±1% FS/7d |
Range drift | ≤±1% FS/7d |
Repeatability | ≤0.5% |
Load | ≤750Ω |
Analog signal | DC 4~20 mA |
Operating Conditions | |
Gas sample temperature | Room temperature |
Gas sample | |
dewpoint TEMP. | ≤-30℃ |
Gas sample flow | ≤1000mL/min |
Gas sample dust concentration | ≤10mg/m₃ |
Corrosive | ≤10PPm |
Working Conditions | |
Ambient TEMP. | +5~+45℃ |
Relative humidity | ≤85% |
Power supply | AC 220V 50 Hz |
Consumption | ≤0.2KVA |
Ambient atmosphere | the environment does not contain explosive,corrosive atmosphere, and has have good ventilation |
Ambient air pressure | altitude below 2500m |
Air velocity | ≤0.5m/s |
Principle Of Air Separation
Cryogenic air is the use of O₂, N₂, Ar in the air with different boiling points (O₂: -183 °C, N₂: -196 °C, Ar: -186 °C) for many times to carry out the partial condensation of the mixed vapor and the partial evaporation of the mixed liquid rectification process, and finally separate and purify it.
