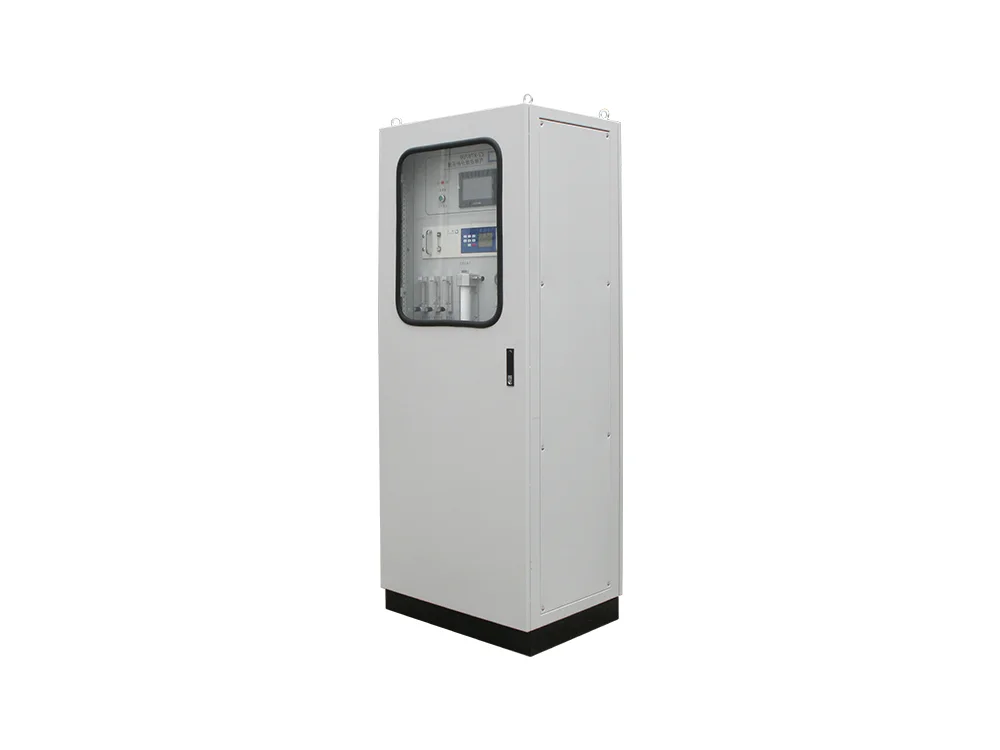

Custom CI-XT6700 Calorific value blast furnace gas analysis system
With a wide variety and a complete range of specifications, CHANG AI is of good quality and high reputation.
The Gas Analysis System is a process analysis system, a sampling pretreatment device and its attached application guarantee part (standard gas). Through the correct matching and reasonable combination of the pretreatment system for the field application conditions and process conditions, the analysis instrument can It is well adapted to the complex process conditions of the sample gas to be measured.
CI-XT6700 Calorific value blast furnace gas analysis system Product Features
Specially designed air chamber absorber, narrow band filter with strong anti-interference ability and high detection accuracy;
High stability infrared light source, receiver constant temperature control, good instrument stability;
Measuring the mirror gold plating of the gas chamber, corrosion resistance;
Microcomputer intelligent modular design, touch button operation, LCD large screen blue screen display;
Isolated output signal DC 0/4-20mA, optional communication interface;
Alarm output (upper and lower limit extreme value alarm, self-test fault alarm).
Technical Index
Reaction Speed | |
Analyzer | Lag time:T₁₀≤5s |
Measuring range (customizable) | Rise time:T₁₀~T₉₀≤2s |
0~99.9% CO | |
0~99.9% CO₂ | |
0~99.9% H₂ | |
System | Lag time:T₁₀≤60s |
Rise time:T₁₀~T₉₀≤2s | |
Technical Indicators | |
Zero drift | ≤±1% FS/7d |
Range drift | ≤±1% FS/7d |
Repeatability | ≤0.5% |
Load | ≤750Ω |
Analog signal | DC 4~20 mA |
Operating Conditions | |
Gas sample temperature | ≤100℃ |
Gas sample flow | ≤1000mL/min |
Gas sample dust concentration | ≤ 20mg/m³ |
Corrosive | ≤ 500PPm |
working Conditions | |
Ambient TEMP. | +5~+40℃ |
Relative humidity | ≤85% |
Power supply | AC 220V 50 Hz |
Consumption | ≤5KVA |
Ambient atmosphere | Altitude below 2500m |
No direct sunlight radiation | |
No strong electromagnetic field interference | |
No mechanical vibration | |
Ambient air pressure | ≤0.5m/s |
Air velocity | Horizontal |
Purging nitrogen requirements | No water, no dust |
Pressure:0.4-0.65Mpa | |
Flow rate:about 100 L/ min | |
Gas consumption:about 0.3m³ /24 h | |
Safety performance of the system | Insulation resistance of the system:The insulation resistance of the system not smaller than 5MΩ |
5.2 dielectric strength of the system: Under the test voltage of 1.25KV, breakdown and arcing will not appear in 1min | |
System manufacturing standard | Q/CI-2012 |
